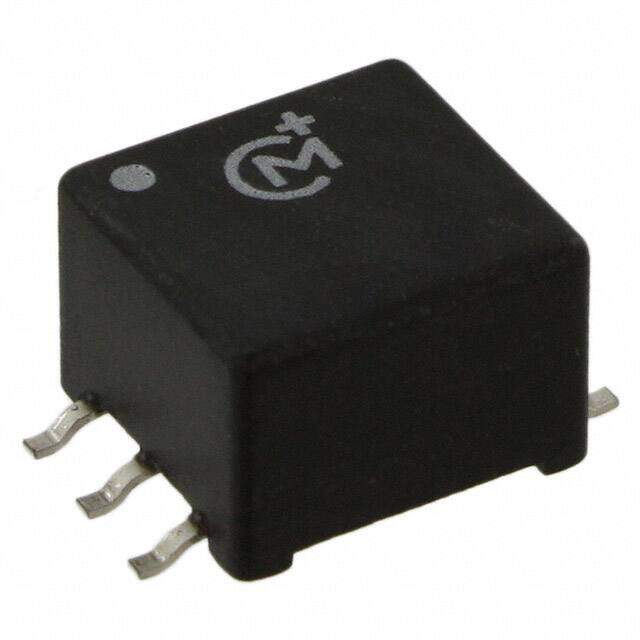

78602/2MC
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Transformers / Pulse Transformers
Description
Pulse Transformers 500uH 1:1:1 Turns
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.52495
≥1 USD $2.52495
≥10 USD $2.38203
≥100 USD $2.2472
≥500 USD $2.12
≥1000 USD $2
≥3000 USD $1.88679
Inventory: 5241
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DIP
Number of Pins 6
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series 786
Size / Dimension 0.375Lx0.354W 9.52mmx9.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Functions 1
Depth 9mm
Approval Agency UL
Inductance 500μH
DC Resistance (DCR) 340mOhm
Lead/Base Style Gull Wing
Isolation Voltage 1000V
Transformer Type General Purpose
Turns Ratio - Primary:Secondary 1:1.1
ET (Volt-Time) 10VμS
ET Product-Min 10 V-us
Dimensions
Height 6.35mm
Height Seated (Max) 0.250 6.35mm
Length 9.52mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
