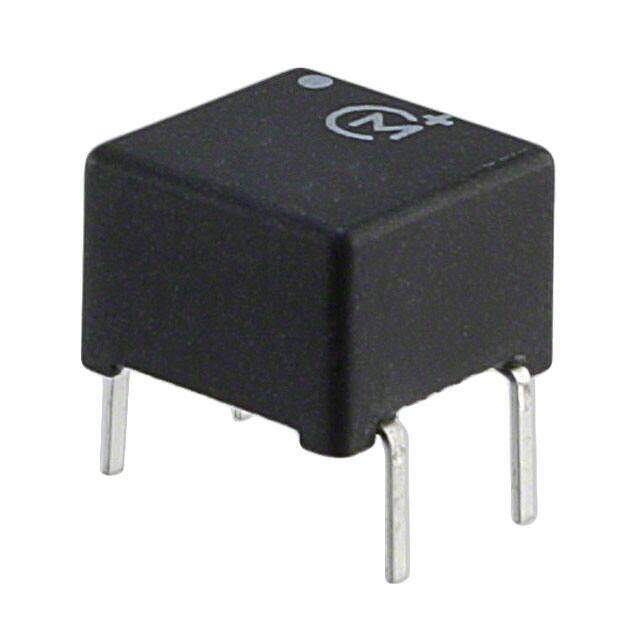

78601/16C image
Favorite
78601/16C image
Favorite
RoHS
RoHS RoHS compliant
Package DIP
Category Transformers / Pulse Transformers
Description MURATA POWER SOLUTIONS 78601/16C PULSE TRANSFORMER, 1:1, 4000 uH, DIP
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.64122
≥1 USD $1.64122
≥10 USD $1.54832
≥100 USD $1.46068
≥500 USD $1.378
≥1000 USD $1.3
≥3000 USD $1.22642
Inventory: 1188
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 9.52mm
Height Seated (Max) 0.250 6.35mm
Height 6.35mm

Technical

ET Product-Min 28 V-us
ET (Volt-Time) 28VμS
Turns Ratio (NpNs) 1:1
Turns Ratio - Primary:Secondary 1:1
Transformer Type General Purpose
Isolation Voltage 1kV
Lead/Base Style PC Pin
DC Resistance (DCR) 840mOhm
Inductance 4mH
Approval Agency UL
Number of Outputs 1
Depth 9mm
Number of Functions 1
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.354Lx0.375W 9.00mmx9.52mm
Series 786
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Weight 0.039oz 1.1g
Number of Pins 6
Package / Case DIP
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 11 Weeks
