76601/3C
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Transformers / Pulse Transformers
Description

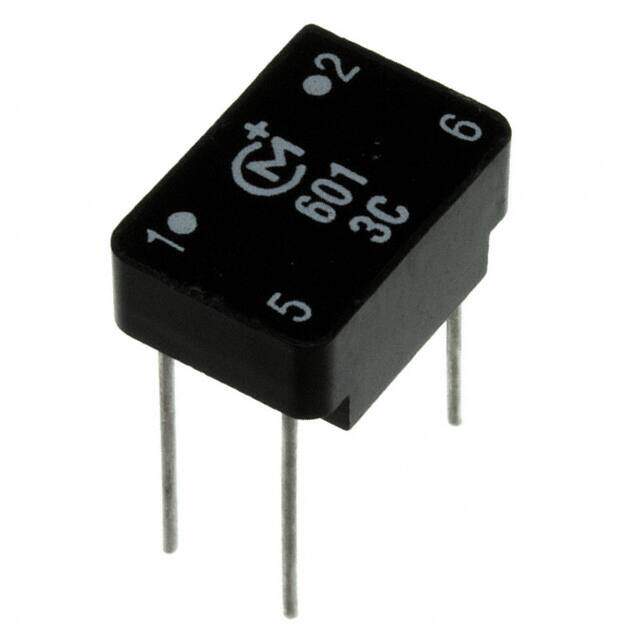

MURATA POWER SOLUTIONS 76601/3C Pulse Transformer, PCB, 1:1, 219 H, 0.5 ohm, 5.5 Vs, 500 V
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.984652
≥1 USD $3.984652
≥200 USD $1.589922
≥500 USD $1.537406
≥1000 USD $1.511148
Inventory: 7342
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case DIP
Number of Pins 4
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series 766
Size / Dimension 0.500Lx0.350W 12.70mmx8.89mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Additional Feature COMMON MODE CHOKES AVAILABLE
Capacitance 12μF
Number of Functions 1
Depth 8.89mm
Approval Agency UL
Inductance 219μH
DC Resistance (DCR) 500mOhm
Lead/Base Style PC Pin
Isolation Voltage 500V
Transformer Type General Purpose
Turns Ratio - Primary:Secondary 1:1
Turns Ratio (NpNs) 1:1
ET (Volt-Time) 5.5VμS
ET Product-Min 5.5 V-us
Dimensions
Height 5.84mm
Height Seated (Max) 0.260 6.60mm
Length 12.7mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
