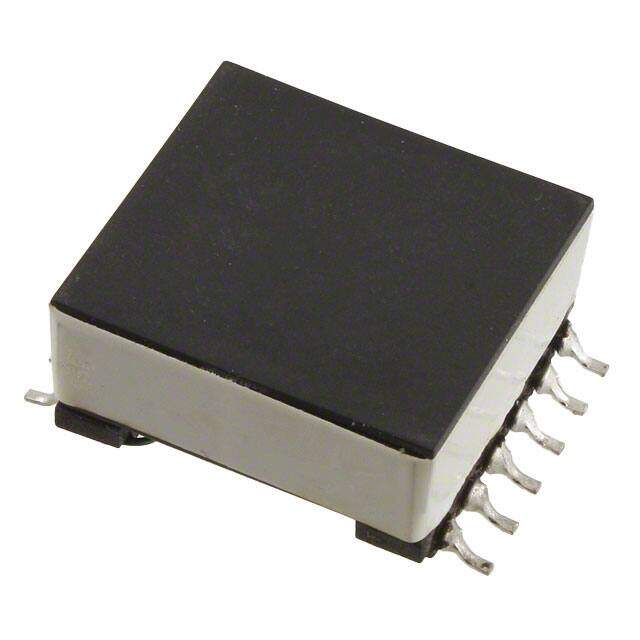

VPH5-0083TR-R image
Favorite
VPH5-0083TR-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Transformers / Pulse Transformers
Description Inductor Power Wirewound 12uH 20% Ferrite 1.7A 71.1mOhm DCR T/R
PDF
/
Buying Options
Total Price: USD $9.36
Unit Price: USD $9.3632
≥1 USD $9.3632
≥10 USD $8.35384
≥100 USD $7.84784
≥500 USD $7.594576
Inventory: 264
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.425 10.80mm
Height 10.795mm

Technical

ET (Volt-Time) 98.4VμS
Number of Coils 6
Inductance - Series 5.75 mH
Inductance - Parallel 159.65 μH
Transformer Type General Purpose
Case/Size Code 8383
Terminal Placement DUAL IN-LINE
Inductor Application POWER INDUCTOR
Max DC Current 1.96A
Current 1.41A
DC Resistance (DCR) 71.1mOhm
Test Frequency 1MHz
Inductance 12μH
Military Standard Not
Construction Chip
Depth 28.5mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.00.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance 20%
Size / Dimension 0.827Lx1.122W 21.00mmx28.50mm
Series VERSA-PAC?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Weight 19.05088g
Number of Pins 12
Terminal Shape GULL WING
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
