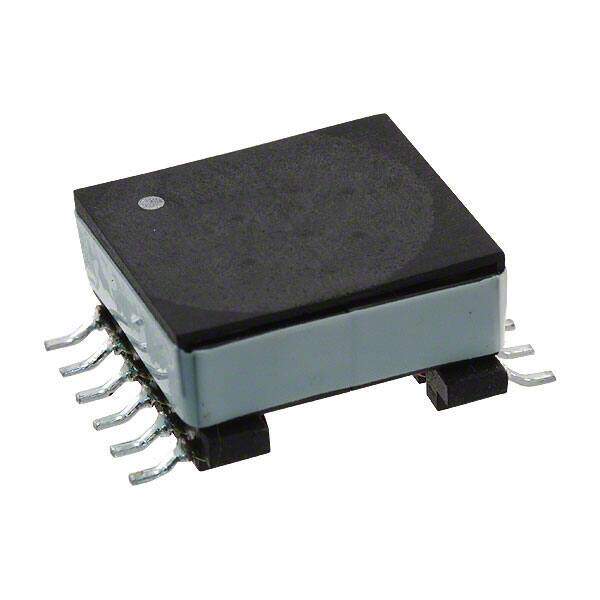

VPH3-0084-R image
Favorite
VPH3-0084-R image
Favorite
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Transformers / Pulse Transformers
Description INDUCTOR/TRANSFORMER 14.2UH SMD
PDF
/
Buying Options
Total Price: USD $8.15
Unit Price: USD $8.1488
≥1 USD $8.1488
≥10 USD $6.70208
≥100 USD $6.158944
≥500 USD $5.79656
≥1000 USD $5.524816
Inventory: 404
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
Radiation Hardening No

Dimensions

Width 22.3012mm
Length 17.0942mm
Height Seated (Max) 0.331 8.40mm
Height 8.4mm

Technical

ET (Volt-Time) 39.8VμS
Number of Coils 6
Inductance - Series 219.6 μH
Inductance - Parallel 6.1 μH
Transformer Type General Purpose
Max DC Current 670mA
Current 1.7A
DC Resistance (DCR) 140mOhm
Inductance 14.2μH
Military Standard Not
Depth 22.3mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 20%
Size / Dimension 0.673Lx0.878W 17.10mmx22.30mm
Series VERSA-PAC?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Weight 7.71107g
Number of Pins 12
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
