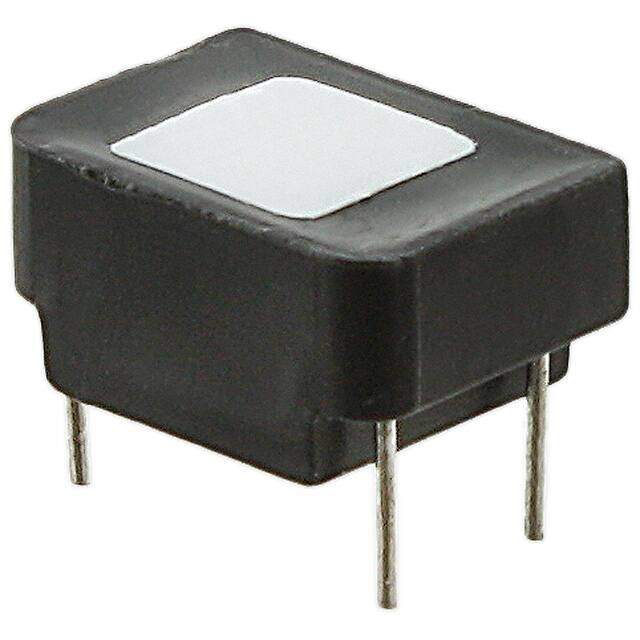

VP4-0060-R image
Favorite
VP4-0060-R image
Favorite
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Transformers / Pulse Transformers
Description Inductor Power Wirewound 4.9uH 20% Ferrite 1.7A 57mOhm DCR Bulk
PDF
/
Buying Options
Total Price: USD $8.84
Unit Price: USD $8.844
≥1 USD $8.844
≥10 USD $7.62696
≥100 USD $6.853317
≥500 USD $6.521636
≥1000 USD $6.411152
≥3000 USD $6.19007
Inventory: 102
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 18.0086mm
Length 18mm
Height Seated (Max) 0.394 10.00mm
Height 10mm

Technical

ET (Volt-Time) 44.7VμS
Number of Coils 6
Inductance - Series 176.4 μH
Inductance - Parallel 4.9 μH
Turns Ratio - Primary:Secondary 1:1
Transformer Type General Purpose
Max DC Current 2.18A
Current 1.7A
DC Resistance (DCR) 57mOhm
Inductance 4.9μH
Military Standard Not
Current Rating 1.7A
Depth 24.6mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type General Purpose
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 20%
Size / Dimension 0.709Lx0.969W 18.00mmx24.60mm
Series VERSA-PAC?
Published 2007
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Weight 8.618255g
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
