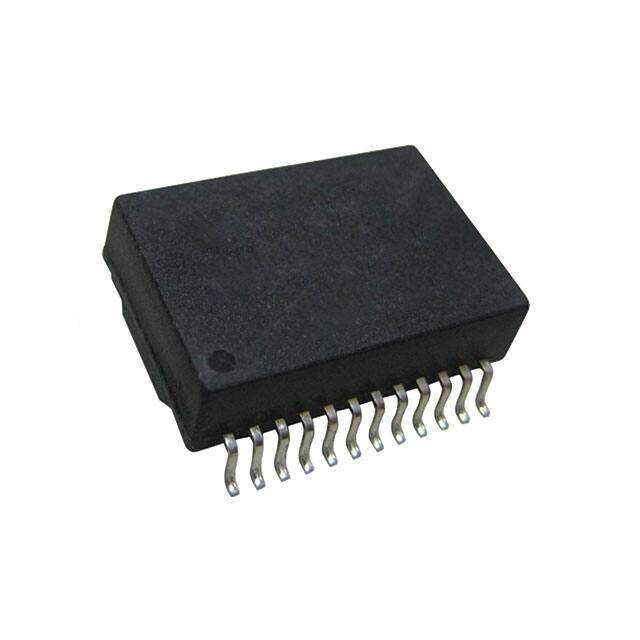

SM51625EL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Pulse Transformers
Description
Audio Transformers / Signal Transformers XFMER 1.2A POE
PDF
/
Buying Options
Total Price: USD $2.74
Unit Price: USD $2.7368
≥1 USD $2.7368
≥10 USD $2.21848
≥100 USD $1.79344
≥500 USD $1.680096
≥1000 USD $1.60468
Inventory: 3598
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series SM
Size / Dimension 0.691Lx0.480W 17.55mmx12.20mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature HEIGHT DIMENSION INCLUDING TERMINALS
Packing Method TR, 13 INCH
Number of Functions 4
Base Part Number SM516
Physical Dimension L17.55XB12.2XH6.0 (mm)
Inductance 10μH
Isolation Voltage 1500V
Transformer Type LAN
Turns Ratio - Primary:Secondary 1:1
Turns Ratio (NpNs) 1CT:1CT
Dimensions
Height Seated (Max) 0.246 6.25mm
Length 17.55mm
Width 12.2mm
Compliance
RoHS Status ROHS3 Compliant
