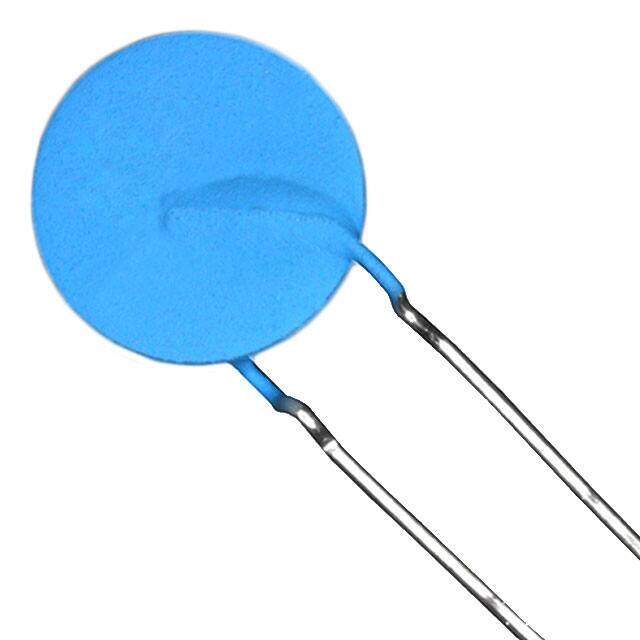

B59840C0080A070
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 265V 170MA RADIAL
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7248
≥1 USD $1.7248
≥10 USD $1.64208
≥100 USD $1.56024
≥500 USD $1.258928
≥1000 USD $1.067352
≥3000 USD $1.039984
Inventory: 443
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.827 21.00mm
Technical
Resistance @ 25°C 6Ohm
Current - Trip (It) 350mA
Voltage - Max 265V
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 170mA
Rated (AC) Voltage (URac) 230V
Current - Max 4.1A
Lead Spacing 0.197 5.00mm
Approval Agency UR, VDE
Packing Method STRIP PACK
Terminal Finish Tin (Sn)
Type Ceramic
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Size / Dimension 0.689Dia x 0.197 T 17.50mmx5.00mm
Packaging Bulk
Operating Temperature 0°C~60°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 14 Weeks
