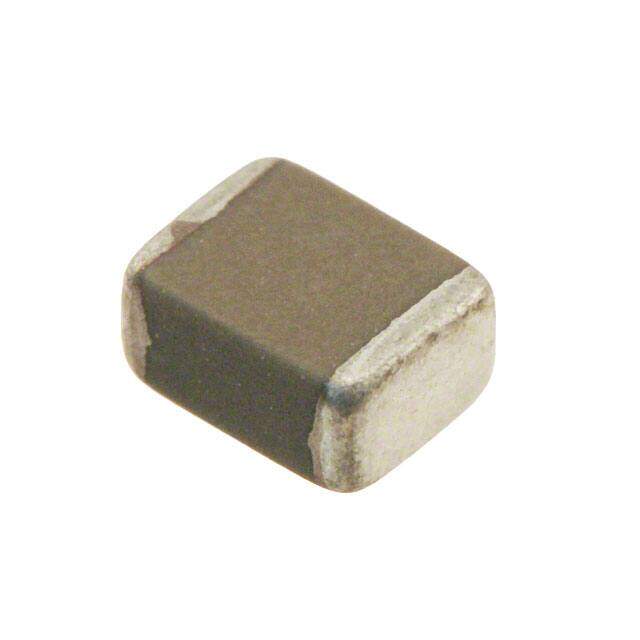

B59807A0090A062
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Circuit Protection / PTC Resettable Fuses
Description
EPCOS B59807A0090A062 THERMISTOR, PTC, 265VAC, 15MA, 25%
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.87296
≥100 USD $0.81752
≥500 USD $0.676368
≥1000 USD $0.56364
≥3000 USD $0.549578
Inventory: 16651
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance 25%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Ceramic
Terminal Finish Tin (Sn)
HTS Code 8533.40.80.70
Packing Method TR, BLISTER, 7 INCH
Approval Agency UR
Terminal Placement DUAL ENDED
Current - Max 200mA
Rated (AC) Voltage (URac) 265V
Current - Hold (Ih) (Max) 15mA
Thermistor Application OVERLOAD PROTECTION
Voltage - Max 265V
Current - Trip (It) 40mA
Resistance @ 25°C 400Ohm
Dimensions
Thickness (Max) 0.071 1.80mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
