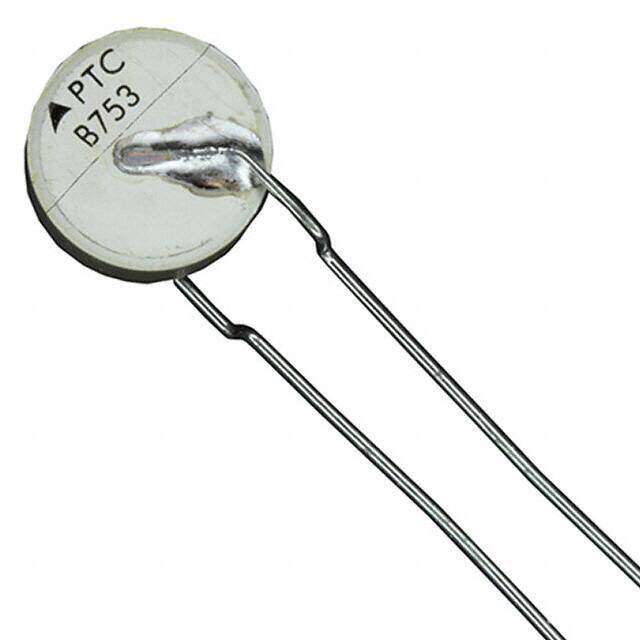

B59753B0120A070
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 120 Ohm 25% 2-Pin Radial Cardboard Strip
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 1487
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.650 16.50mm
Technical
Resistance @ 25°C 120Ohm
Current - Trip (It) 112mA
Time to Trip 3s
Voltage - Max 420V
Thermistor Application OVERLOAD PROTECTION
Rated (AC) Voltage (URac) 440V
Current - Max 2A
Lead Spacing 0.197 5.00mm
Approval Agency UL
Packing Method STRIP PACK
Terminal Finish Tin (Sn)
Type Ceramic
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.492Dia x 0.276 T 12.50mmx7.00mm
Published 2002
Packaging Bulk
Operating Temperature 0°C~60°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 16 Weeks
