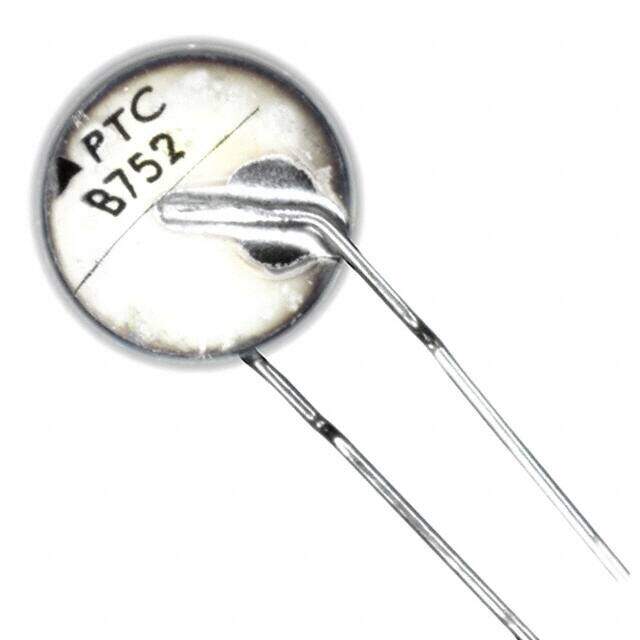

B59752B0120A070
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 80 Ohm 25% 2-Pin Radial Cardboard Strip
PDF
/
Inventory: 8816
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.650 16.50mm
Technical
Resistance @ 25°C 80Ohm
Current - Trip (It) 137mA
Time to Trip 4s
Voltage - Max 420V
Thermistor Application OVERLOAD PROTECTION
Rated (AC) Voltage (URac) 260V
Current - Max 2A
Lead Spacing 0.197 5.00mm
Approval Agency UL
Packing Method STRIP PACK
Terminal Finish Tin (Sn)
Type Ceramic
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.492Dia x 0.276 T 12.50mmx7.00mm
Packaging Bulk
Operating Temperature 0°C~60°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
