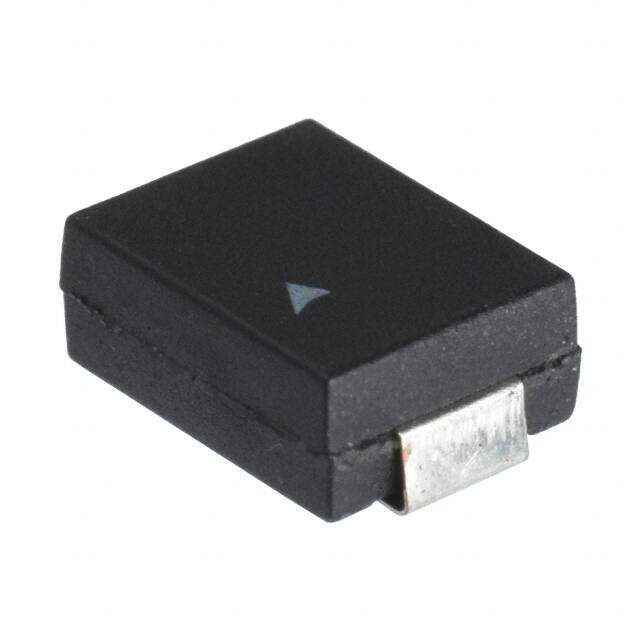

B59115P1080A062
RoHS
RoHS compliant
RoHS compliantPackage 3225 (8063 Metric)
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 55 Ohm 25% 2-Pin 3225 Surface Mount Solder Pad T/R Automotive
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.5752
≥1 USD $1.5752
≥10 USD $1.50128
≥100 USD $1.4256
≥500 USD $1.150688
≥1000 USD $0.975568
≥3000 USD $0.950576
Inventory: 21646
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.150 3.80mm
Technical
Resistance @ 25°C 55Ohm
Current - Trip (It) 85mA
Voltage - Max 80V
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 40mA
Rated (AC) Voltage (URac) 63V
Current - Max 700mA
Terminal Placement DUAL ENDED
Packing Method TR, BLISTER, 13 INCH
HTS Code 8533.40.80.70
Terminal Finish Tin (Sn)
Type Ceramic
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.315Lx0.248W 8.00mmx6.30mm
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~60°C
Physical
Terminal Shape J BEND
Surface Mount YES
Package / Case 3225 (8063 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
