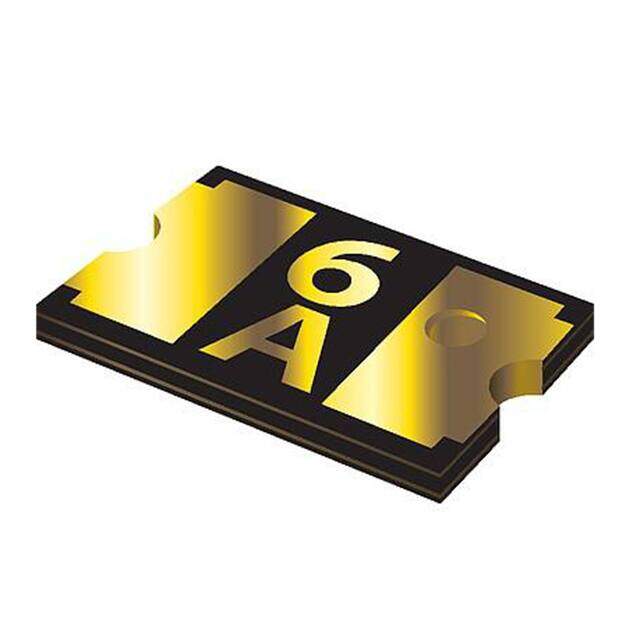

PFUF.110.2
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric), Concave
Category Circuit Protection / PTC Resettable Fuses
Description
Fuse;Resettable;40A;Sz 1210;Dims 3.43x2.8x0.85mm;SMT;6VDC;PCB;PFUF Series
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.27192
≥100 USD $0.256256
Inventory: 1083
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness (Max) 0.028 0.70mm
Height 850μm
Technical
Trip Current 2.2A
Resistance - Post Trip (R1) (Max) 210mOhm
Resistance - Initial (Ri) (Min) 50mOhm
Time to Trip 1s
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 1.1A
Hold Current 1.1A
Rated (AC) Voltage (URac) 6V
Max Voltage Rating (DC) 6V
Terminal Placement DUAL ENDED
Power Dissipation 600mW
Max Current Rating 40A
Case Code (Imperial) 1210
Approval Agency cURus, TUV
Case Code (Metric) 3225
Current Rating 40A
Packing Method TR, BLISTER, 7 INCH
Voltage - Rated DC 6V
HTS Code 8533.40.80.70
Additional Feature 0.05 OHMS AT 23 DEG CEL
Voltage - Rated 6V
Type Polymeric
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Size / Dimension 0.127Lx0.102W 3.22mmx2.58mm
Series PFUF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Terminal Material Electroless Nickel
Weight 19.986414mg
Terminal Shape WRAPAROUND
Package / Case 1210 (3225 Metric), Concave
Mounting Type Surface Mount
Mount PCB
Supply Chain
Factory Lead Time 12 Weeks
