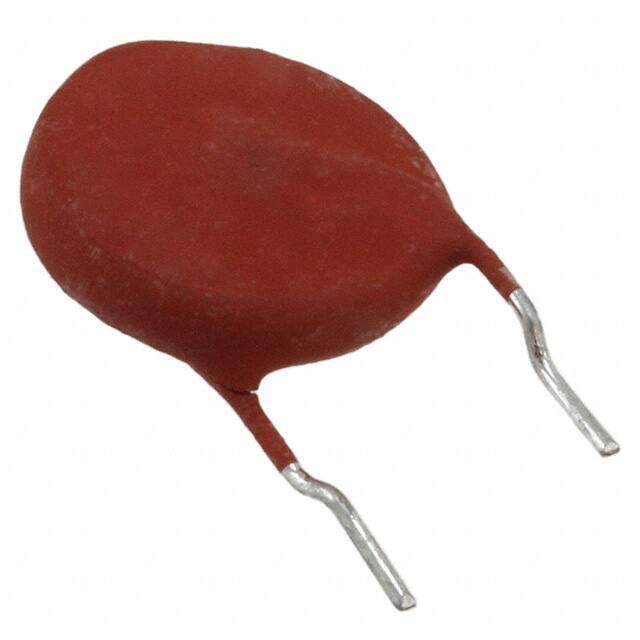

PTGL13AR100H8B72B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 265V 260MA RADIAL
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.433687
≥1 USD $1.433687
≥200 USD $0.555357
≥500 USD $0.535663
≥1000 USD $0.526473
Inventory: 9163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Number of Pins 2
Technical
Operating Temperature -10°C~60°C
Packaging Bulk
Series POSISTOR?, PTGL
Size / Dimension 0.532Dia x 0.157 T 13.50mmx4.00mm
Tolerance 25%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Ceramic
Resistance 10Ohm
Terminal Finish Tin/Copper (Sn/Cu)
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.56A
HTS Code 8533.40.80.70
Max Power Dissipation 2.7W
Depth 6mm
Approval Agency UL
Operating Supply Voltage 265V
Lead Spacing 0.295 7.50mm
Max Supply Voltage 265V
Max Current Rating 2.2A
Current - Max 2.2A
Hold Current 260mA
Thermistor Application OVERLOAD PROTECTION
Trip Current 480mA
Resistance @ 25°C 10Ohm
Dimensions
Height Seated (Max) 0.768 19.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
