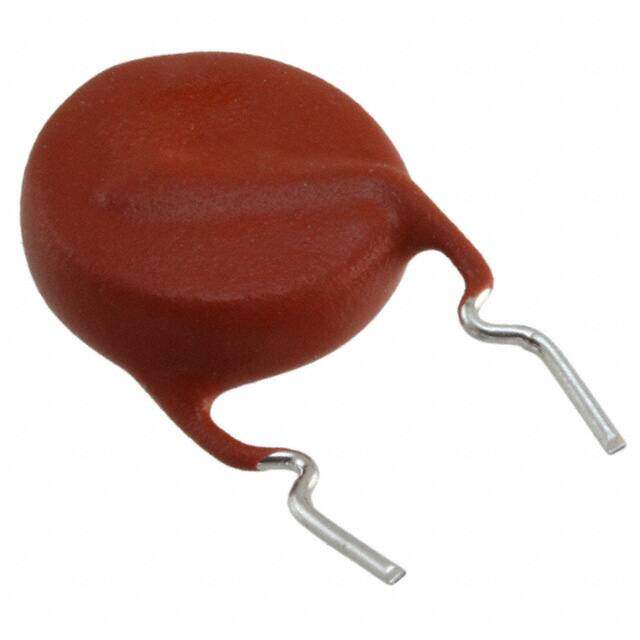

PTGL12AR270M9C01B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 27 Ohm 20% 2-Pin Radial Bulk
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.165855
≥1 USD $1.165855
≥200 USD $0.451638
≥500 USD $0.435883
≥1000 USD $0.428005
Inventory: 3683
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Number of Pins 2
Weight 369.989626mg
Technical
Operating Temperature -10°C~60°C
Packaging Bulk
Series POSISTOR?, PTGL
Size / Dimension 0.551Dia x 0.256 T 14.00mmx6.50mm
Tolerance 20%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Ceramic
Resistance 27Ohm
Terminal Finish Tin/Copper (Sn/Cu)
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.36A
HTS Code 8533.40.80.70
Max Power Dissipation 2.3W
Depth 6.5mm
Current Rating 1.5mA
Approval Agency UL
Lead Pitch 5mm
Operating Supply Voltage 265V
Lead Spacing 0.394 10.00mm
Voltage 265V
Max Supply Voltage 265V
Max Current Rating 1.5A
Current - Max 1.5A
Hold Current 200mA
Thermistor Application OVERLOAD PROTECTION
Trip Current 310mA
Resistance @ 25°C 27Ohm
Dimensions
Height Seated (Max) 0.787 20.00mm
Thickness 4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
