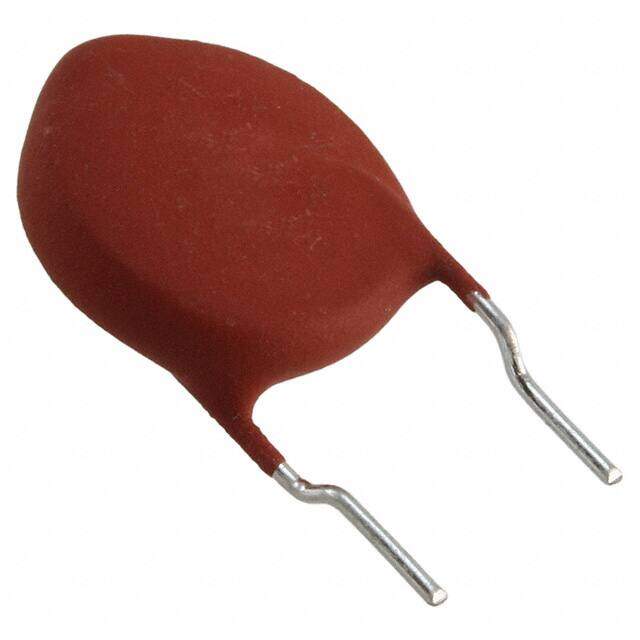

PTGL12AR150H8B72B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 15 Ohm 25% 2-Pin Radial Bulk
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.243316
≥1 USD $1.243316
≥200 USD $0.481834
≥500 USD $0.464767
≥1000 USD $0.456889
Inventory: 8006
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 6mm
Height Seated (Max) 0.728 18.50mm
Height 6mm
Technical
Resistance @ 25°C 15Ohm
Trip Current 400mA
Thermistor Application OVERLOAD PROTECTION
Hold Current 210mA
Current - Max 1.5A
Max Current Rating 1.5A
Max Supply Voltage 265V
Voltage 265V
Lead Spacing 0.295 7.50mm
Operating Supply Voltage 265V
Lead Pitch 5mm
Approval Agency UL
Current Rating 1.5mA
Depth 6mm
Max Power Dissipation 2.1W
HTS Code 8533.40.80.70
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.46A
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 15Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 25%
Size / Dimension 0.492Dia x 0.236 T 12.50mmx6.00mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 369.989626mg
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
