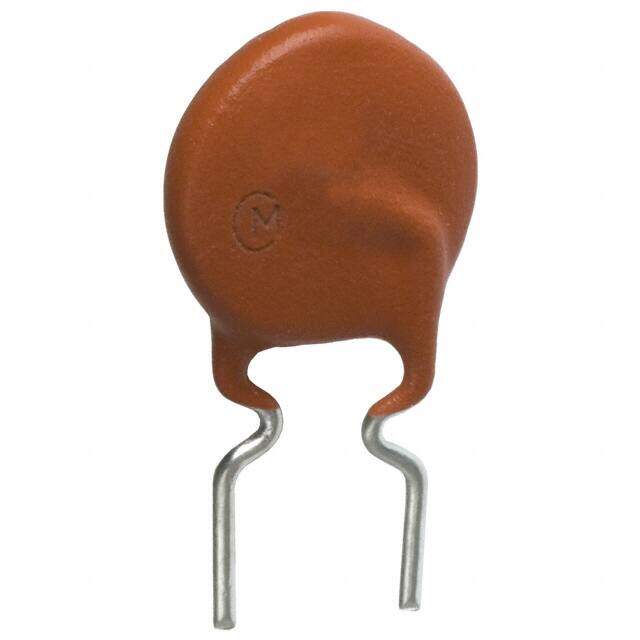

PTGL09AS2R2K3B51B0 image
Favorite
PTGL09AS2R2K3B51B0 image
Favorite

PTGL09AS2R2K3B51B0

Murata Electronics
RoHS
RoHS RoHS compliant
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 51V 522MA RADIAL
PDF
/
Inventory: 5961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Number of Pins 2

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Series POSISTOR?, PTGL
Size / Dimension 0.366Dia x 0.138 T 9.30mmx3.50mm
Tolerance 10%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Ceramic
Resistance 2.2Ohm
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8533.40.80.70
Depth 3.5mm
Current Rating 4A
Approval Agency UL
Lead Pitch 5mm
Lead Spacing 0.197 5.00mm
Voltage 51V
Max Current Rating 4A
Hold Current 412mA
Current - Hold (Ih) (Max) 522mA
Thermistor Application OVERLOAD PROTECTION
Current - Trip (It) 694mA
Trip Current 814mA
Resistance @ 25°C 2.2Ohm

Dimensions

Diameter 9.3mm
Height 14.3mm
Height Seated (Max) 0.563 14.30mm
Thickness 3.5mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
