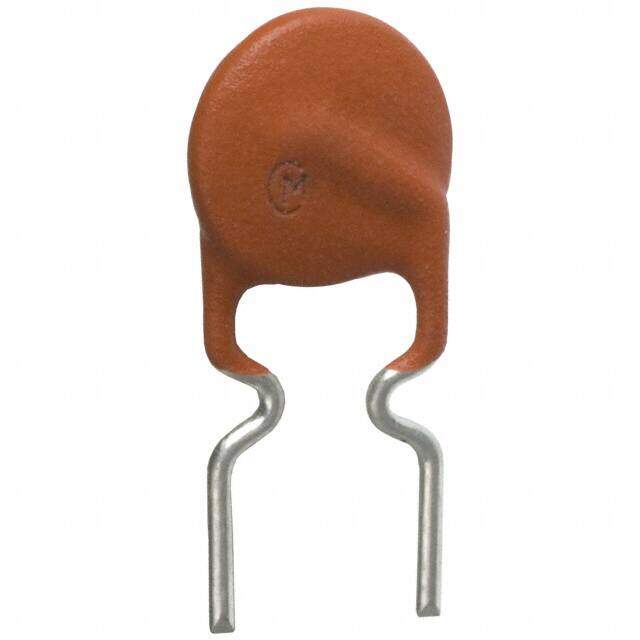

PTGL07AS3R3K3B51B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistors - PTC 3.3ohm +/-10% PTC Thermistor
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.77296
≥1 USD $0.77296
≥10 USD $0.729205
≥100 USD $0.687933
≥500 USD $0.64899
≥1000 USD $0.612254
Inventory: 1126
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 3.5mm
Height Seated (Max) 0.484 12.30mm
Height 12.3mm
Diameter 7.3mm
Technical
Trip Current 606mA
Voltage - Max 51V
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 307mA
Hold Current 307mA
Max Current Rating 3A
Voltage 51V
Lead Spacing 0.197 5.00mm
Lead Pitch 5mm
Current Rating 3A
Resistor Type PTC THERMISTOR
HTS Code 8533.40.80.70
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 3.3Ohm
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 10%
Size / Dimension 0.287Dia x 0.138 T 7.30mmx3.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Physical
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
