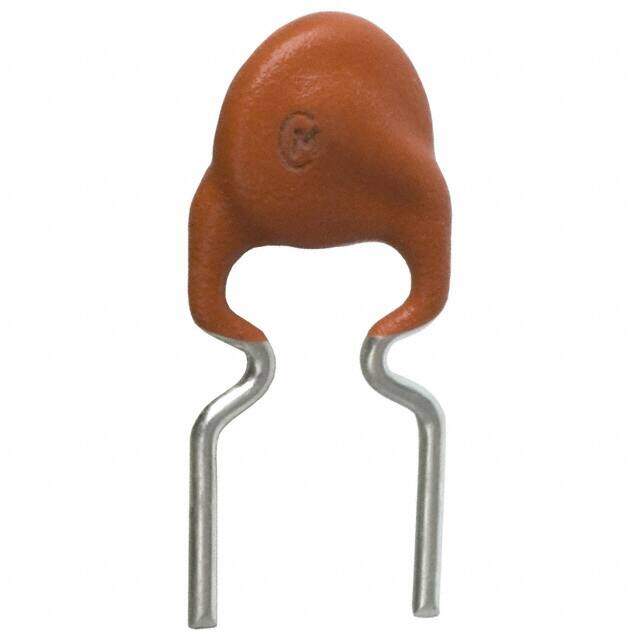

PTGL04AS560K6B51B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistors - PTC 56ohm +/-10% PTC Thermistor
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.827127
≥1 USD $0.827127
≥200 USD $0.320348
≥500 USD $0.309844
≥1000 USD $0.30328
Inventory: 948
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status ROHS3 Compliant
Dimensions
Thickness 4.5mm
Height Seated (Max) 0.551 14.00mm
Height 10.5mm
Diameter 5.5mm
Technical
Resistance @ 25°C 56Ohm
Trip Current 147mA
Current - Trip (It) 125mA
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 94mA
Hold Current 74mA
Max Current Rating 500mA
Voltage 140V
Lead Spacing 0.197 5.00mm
Lead Pitch 5mm
Approval Agency UL
Current Rating 500mA
Depth 4.5mm
HTS Code 8533.40.80.70
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 560Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 10%
Size / Dimension 0.177Dia x 0.177 T 4.50mmx4.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
