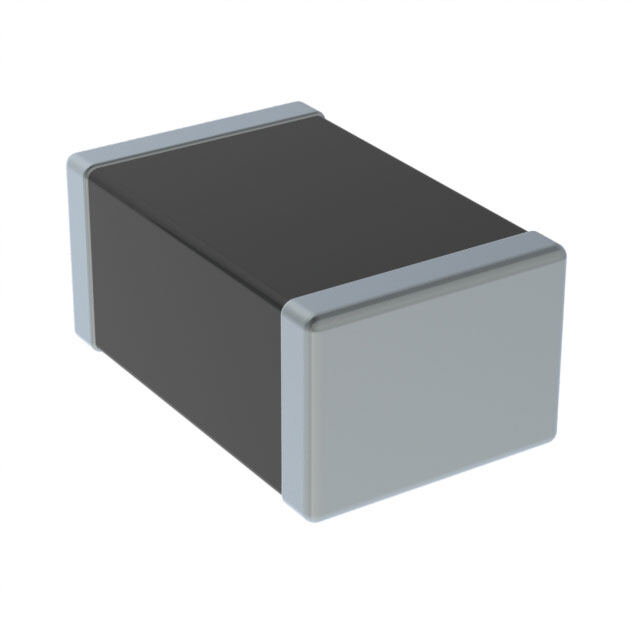

PRG21BC0R2MM1RA
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Circuit Protection / PTC Resettable Fuses
Description
THERMISTOR PTC 0.2 OHM SMD
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.47168
≥100 USD $0.40656
≥500 USD $0.392128
≥1000 USD $0.33396
≥3000 USD $0.2904
Inventory: 25954
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape FLAT
Number of Pins 2
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Series POSISTOR?, PRG
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance 20%
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Ceramic
Resistance 200mOhm
HTS Code 8533.40.80.70
Voltage - Rated DC 6V
Packing Method TAPE, PAPER
Depth 1.25mm
Current Rating 10A
Case Code (Metric) 2012
Approval Agency UL
Case Code (Imperial) 0805
Operating Supply Voltage 6V
Voltage 20V
Max Current Rating 10A
Terminal Placement DEND
Hold Current 500mA
Current - Hold (Ih) (Max) 750mA
Thermistor Application OVERLOAD PROTECTION
Current - Trip (It) 1.62A
Trip Current 2A
Resistance @ 25°C 200mOhm
Dimensions
Height 1.25mm
Thickness (Max) 0.043 1.10mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
