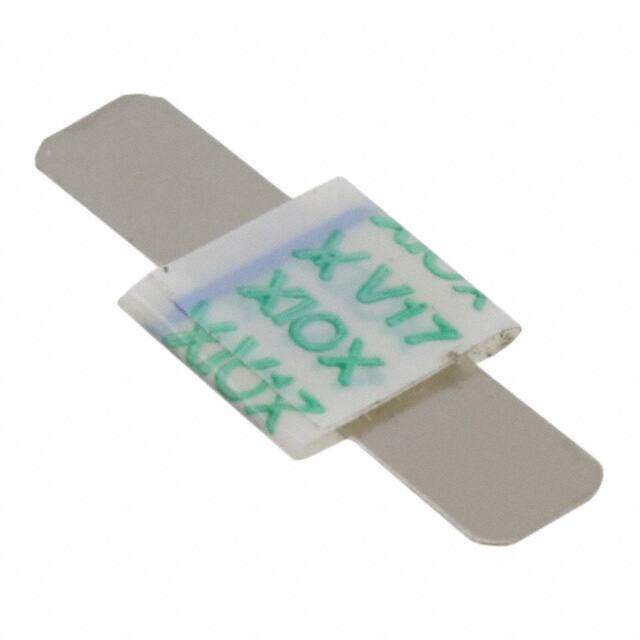

VTP170F image
Favorite
VTP170F image
Favorite
RoHS
RoHS RoHS compliant
Package Strap
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 16V 1.7A STRAP
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.79552
≥100 USD $0.7436
≥500 USD $0.615472
≥1000 USD $0.512864
≥3000 USD $0.500016
Inventory: 10643
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Thickness (Max) 0.032 0.80mm

Technical

Trip Current 3.4A
Current - Trip (It) 3.4A
Resistance - Post Trip (R1) (Max) 105mOhm
Resistance - Initial (Ri) (Min) 30mOhm
Time to Trip 5s
Voltage - Max 16V
Hold Current 1.7A
Current - Max 100A
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.648Lx0.283W 16.45mmx7.20mm
Series PolySwitch?, VTP
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Package / Case Strap
Mounting Type User Defined

Supply Chain

Factory Lead Time 9 Weeks
