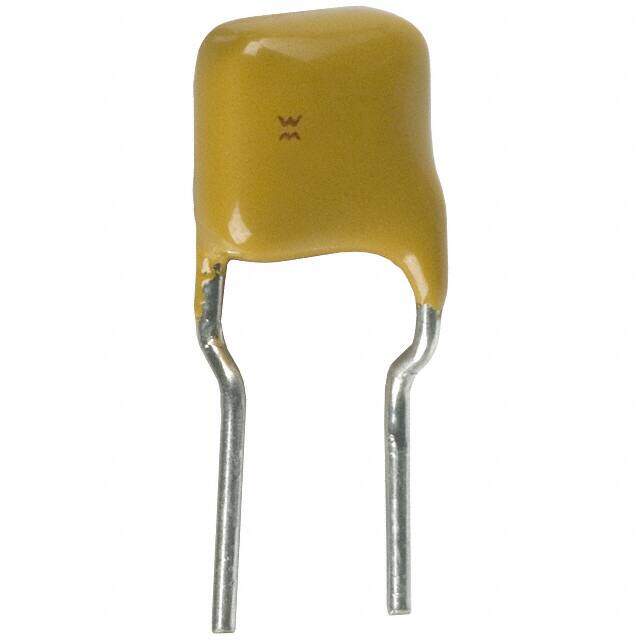

TR250-120
RoHS
/
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 250V 120MA RADIAL
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.88005
≥1 USD $1.88005
≥10 USD $1.5428
≥100 USD $1.49435
≥500 USD $1.4459
≥1000 USD $1.39745
Inventory: 299
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.433 11.00mm
Technical
Resistance - Post Trip (R1) (Max) 16Ohms
Resistance - Initial (Ri) (Min) 4Ohms
Time to Trip 1.5s
Voltage - Max 250V 60V Int
Current - Hold (Ih) (Max) 120mA
Current - Max 3A
Lead Spacing 0.197 5.00mm
Type Polymeric
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 0.256Lx0.181W 6.50mmx4.60mm
Series PolySwitch?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Radial, Disc
Mounting Type Through Hole
