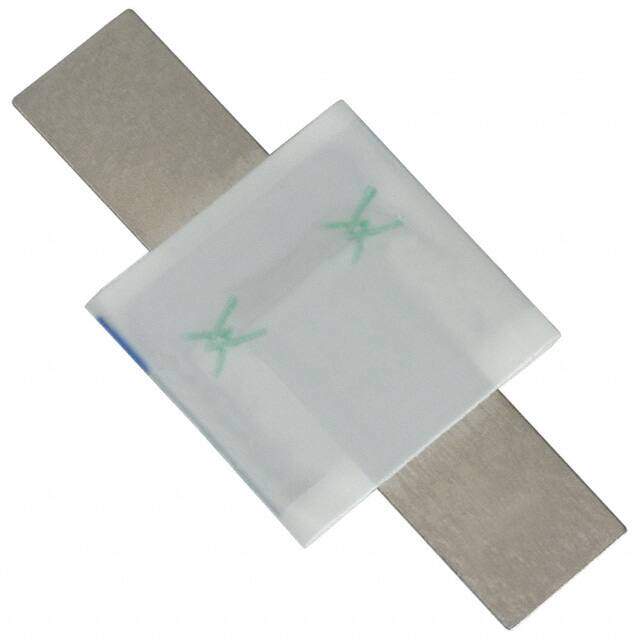

SRP200F
RoHS
RoHS compliant
RoHS compliantPackage Strap
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 30V 2A STRAP
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.7128
≥100 USD $0.66616
≥500 USD $0.551232
≥1000 USD $0.45936
≥3000 USD $0.44785
Inventory: 36453
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.043 1.10mm
Height 1.1mm
Technical
Trip Current 4.4A
Resistance - Post Trip (R1) (Max) 100mOhm
Resistance - Initial (Ri) (Min) 30mOhm
Time to Trip 4s
Voltage - Max 30V
Hold Current 2A
Current - Max 100A
Operating Supply Voltage 30V
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Resistance 75mOhm
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.880Lx0.417W 22.35mmx10.60mm
Series PolySwitch?, SRP
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Strap
Mounting Type User Defined
Supply Chain
Factory Lead Time 9 Weeks
