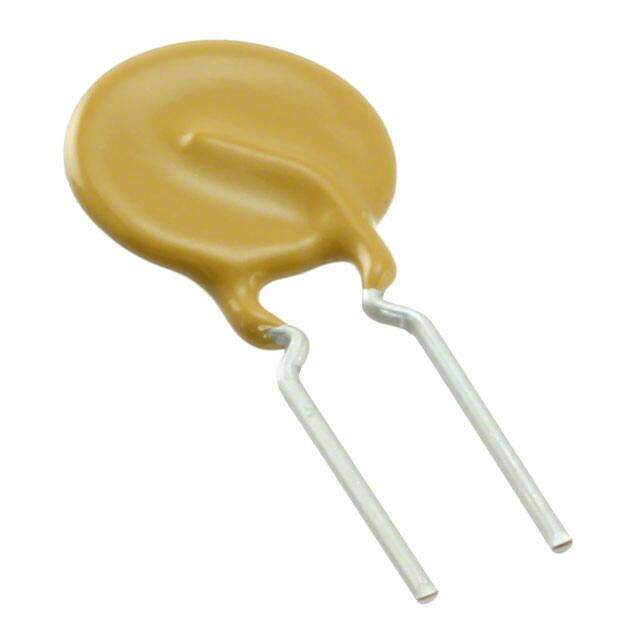

RXEF110K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 72V 1.1A RADIAL
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.40128
≥100 USD $0.38808
≥500 USD $0.326656
≥1000 USD $0.271128
≥3000 USD $0.24647
Inventory: 1137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.689 17.50mm
Technical
Trip Current 2.2A
Current - Trip (It) 2.2A
Resistance - Post Trip (R1) (Max) 380mOhm
Resistance - Initial (Ri) (Min) 150mOhm
Time to Trip 8.2s
Voltage - Max 72V
Hold Current 1.1A
Current - Max 40A
Lead Spacing 0.199 5.05mm
Approval Agency CQC, CSA, TUV, UL
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.504Dia x 0.118 T 12.80mmx3.00mm
Series PolySwitch?, RXEF
Published 2013
Packaging Bag
Operating Temperature -40°C~85°C
Physical
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
