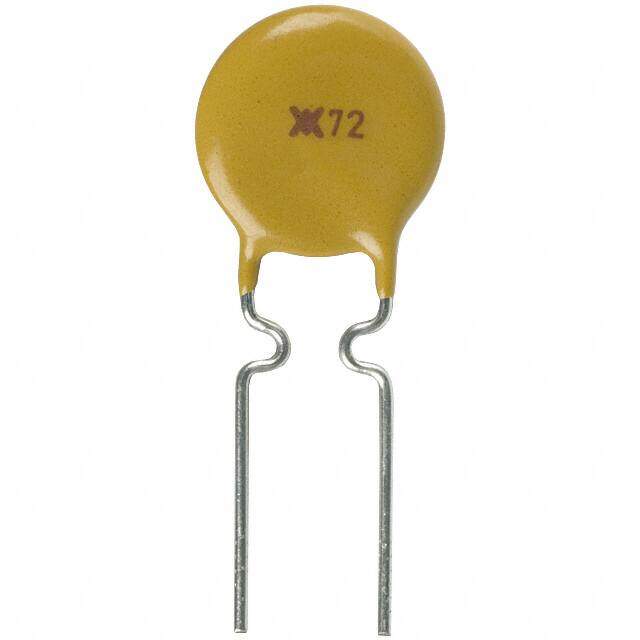

RXEF075
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
LITTELFUSE RXEF075 FUSE, PTC RESET, 72V, 750mA, RADIALNew
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.38544
≥100 USD $0.374
≥500 USD $0.314688
≥1000 USD $0.261272
≥3000 USD $0.23753
Inventory: 26777
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Disc
Surface Mount NO
Terminal Shape WIRE
Technical
Operating Temperature -40°C~85°C
Packaging Bag
Published 2005
Series PolySwitch?, RXEF
Size / Dimension 0.402Dia x 0.118 T 10.20mmx3.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Type Polymeric
Terminal Finish Matte Tin (Sn)
Additional Feature 0.25-0.4 OHMS AT 20 DEG CEL
Voltage - Rated DC 72V
Packing Method BULK
Approval Agency CQC, CSA, TUV, UL
Lead Spacing 0.199 5.05mm
Current - Max 40A
Hold Current 750mA
Thermistor Application TEMPERATURE SENSING
Time to Trip 6.3s
Resistance - Initial (Ri) (Min) 250mOhm
Resistance - Post Trip (R1) (Max) 600mOhm
Current - Trip (It) 1.5A
Trip Current 1.5A
Dimensions
Height Seated (Max) 0.598 15.20mm
Compliance
RoHS Status ROHS3 Compliant
