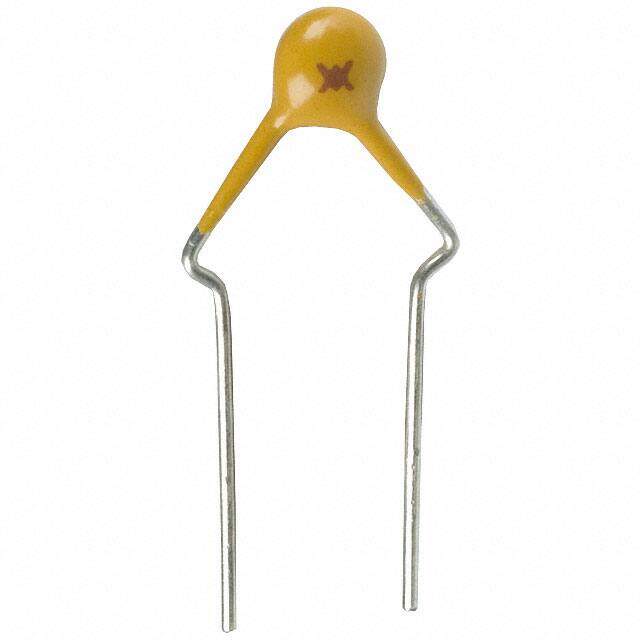

RXEF020S

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 72V 200MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.32208
≥100 USD $0.31152
≥500 USD $0.26224
≥1000 USD $0.217712
≥3000 USD $0.197965
Inventory: 1153
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Through Hole
Package / Case Radial, Disc

Technical

Operating Temperature -40°C~85°C
Packaging Bag
Published 2014
Series PolySwitch?, RXEF
Size / Dimension 0.291Dia x 0.118 T 7.40mmx3.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Polymeric
Approval Agency CQC, CSA, TUV, UL
Lead Spacing 0.199 5.05mm
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Voltage - Max 72V
Time to Trip 2.2s
Resistance - Initial (Ri) (Min) 1.83Ohm
Resistance - Post Trip (R1) (Max) 4.4Ohm
Current - Trip (It) 400mA

Dimensions

Height Seated (Max) 0.461 11.70mm

Compliance

RoHS Status ROHS3 Compliant
