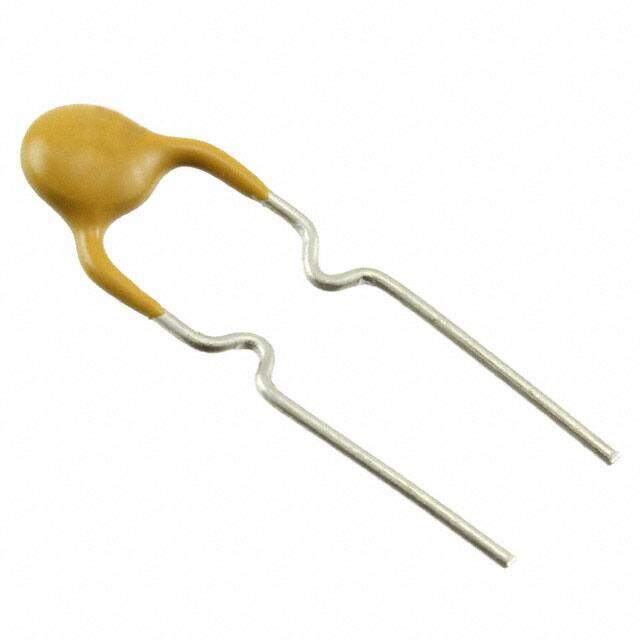

RXEF020
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 72V 200MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.32208
≥100 USD $0.31152
≥500 USD $0.26224
≥1000 USD $0.217712
≥3000 USD $0.197965
Inventory: 28007
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.461 11.70mm
Technical
Trip Current 400mA
Current - Trip (It) 400mA
Resistance - Post Trip (R1) (Max) 4.4Ohm
Resistance - Initial (Ri) (Min) 1.83Ohm
Time to Trip 2.2s
Thermistor Application TEMPERATURE SENSING
Hold Current 200mA
Current - Max 40A
Lead Spacing 0.199 5.05mm
Approval Agency CQC, CSA, TUV, UL
Packing Method BULK
Voltage - Rated DC 72V
Additional Feature 1.83-2.75 OHMS AT 20 DEG CEL
Terminal Finish Matte Tin (Sn)
Type Polymeric
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.291Dia x 0.118 T 7.40mmx3.00mm
Series PolySwitch?, RXEF
Published 2005
Packaging Bag
Operating Temperature -40°C~85°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
