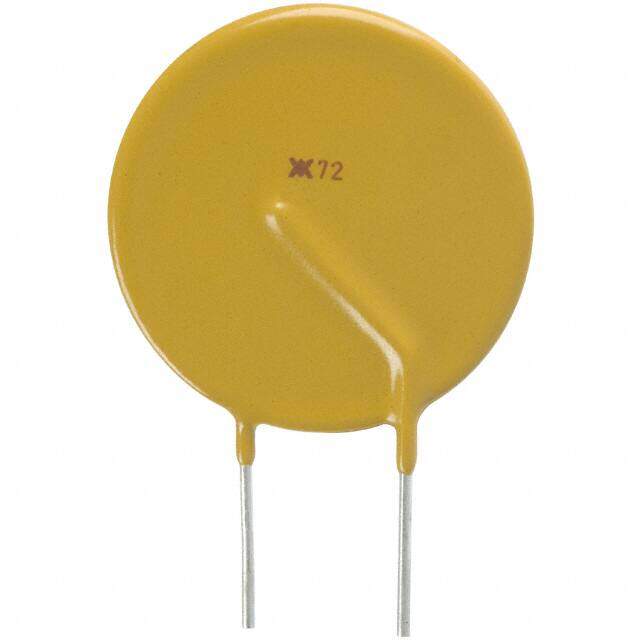

RXE375 image
Favorite
RXE375 image
Favorite
RoHS
/
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 72V 3.75A RADIAL
PDF
/
Inventory: 1129
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 1.252 31.80mm

Technical

Current - Trip (It) 7.5A
Resistance - Post Trip (R1) (Max) 80mOhm
Resistance - Initial (Ri) (Min) 30mOhm
Time to Trip 24s
Voltage - Max 72V
Current - Hold (Ih) (Max) 3.75A
Current - Max 40A
Lead Spacing 0.400 10.15mm
Approval Agency CSA, TUV, UL
Type Polymeric
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 1.071Dia x 0.118 T 27.20mmx3.00mm
Series PolySwitch?, RXE
Packaging Bulk

Physical

Package / Case Radial, Disc
Mounting Type Through Hole
