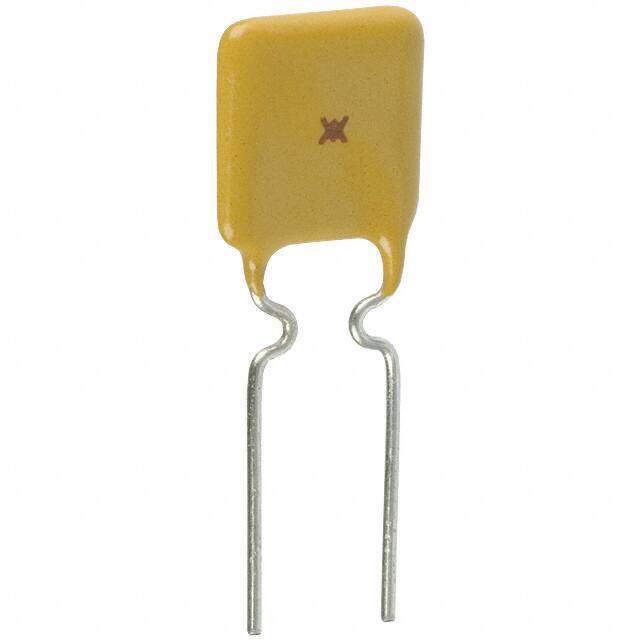

RUSBF250
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 16V 2.5A RADIAL
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.47696
≥100 USD $0.462
≥500 USD $0.388784
≥1000 USD $0.322784
≥3000 USD $0.293427
Inventory: 607
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Disc
Surface Mount NO
Terminal Shape WIRE
Technical
Operating Temperature -40°C~85°C
Packaging Bag
Published 2007
Series PolySwitch?, RUSBF
Size / Dimension 0.449Lx0.118W 11.40mmx3.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Type Polymeric
Additional Feature RESISTANCE RANGE(MIN-MAX): 0.020-0.036
Packing Method BULK
Reach Compliance Code unknown
Rated Power Dissipation (P) 1.2W
Approval Agency CSA, TUV, UL
Lead Spacing 0.118 3.00mm
Current - Max 40A
Rated (AC) Voltage (URac) 16V
Hold Current 2.5A
Thermistor Application TEMPERATURE SENSING
Voltage - Max 16V
Time to Trip 40s
Resistance - Initial (Ri) (Min) 20mOhm
Resistance - Post Trip (R1) (Max) 60mOhm
Current - Trip (It) 5A
Trip Current 5A
Dimensions
Height Seated (Max) 0.720 18.30mm
Compliance
RoHS Status ROHS3 Compliant
