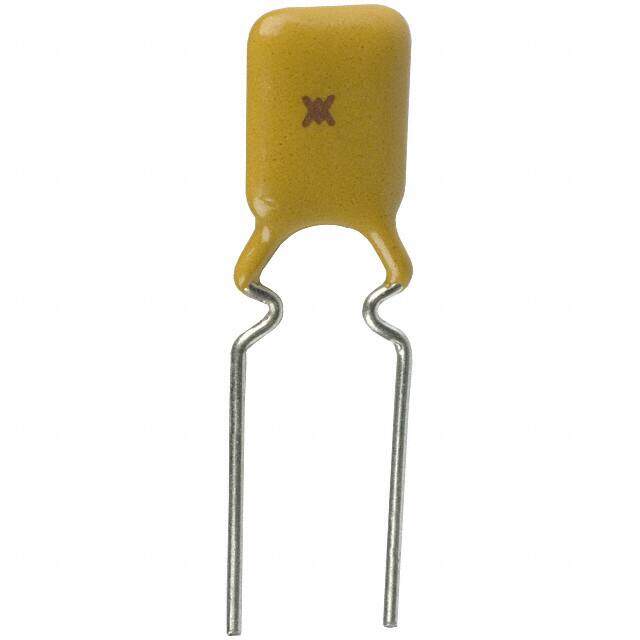

RTE135 image
Favorite
RTE135 image
Favorite
RoHS
/
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 33V 1.35A RADIAL
PDF
/
Inventory: 3024
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.559 14.20mm

Technical

Current - Trip (It) 2.5A
Resistance - Post Trip (R1) (Max) 143mOhms
Resistance - Initial (Ri) (Min) 59mOhms
Time to Trip 4.5s
Voltage - Max 33V
Current - Hold (Ih) (Max) 1.35A
Current - Max 40A
Lead Spacing 0.199 5.05mm
Approval Agency CSA, TUV, UR
Type Polymeric
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 0.291Lx0.118W 7.40mmx3.00mm
Series PolySwitch?
Published 1999
Packaging Bulk

Physical

Package / Case Radial, Disc
Mounting Type Through Hole
