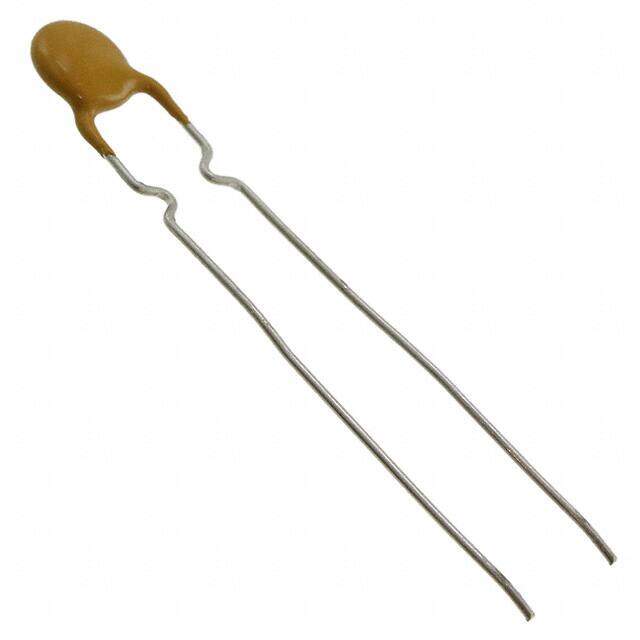

RHEF050
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 30V 500MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.48224
≥100 USD $0.46728
≥500 USD $0.39336
≥1000 USD $0.326656
≥3000 USD $0.296947
Inventory: 3451
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.500 12.70mm
Technical
Trip Current 900mA
Current - Trip (It) 920mA
Resistance - Post Trip (R1) (Max) 1.1Ohm
Resistance - Initial (Ri) (Min) 480mOhm
Time to Trip 2.5s
Voltage - Max 30V
Hold Current 500mA
Current - Max 40A
Lead Spacing 0.199 5.05mm
Operating Supply Voltage 30V
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.291Dia x 0.118 T 7.40mmx3.00mm
Series PolySwitch?, RHEF
Published 2011
Packaging Bag
Operating Temperature -40°C~125°C
Physical
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
