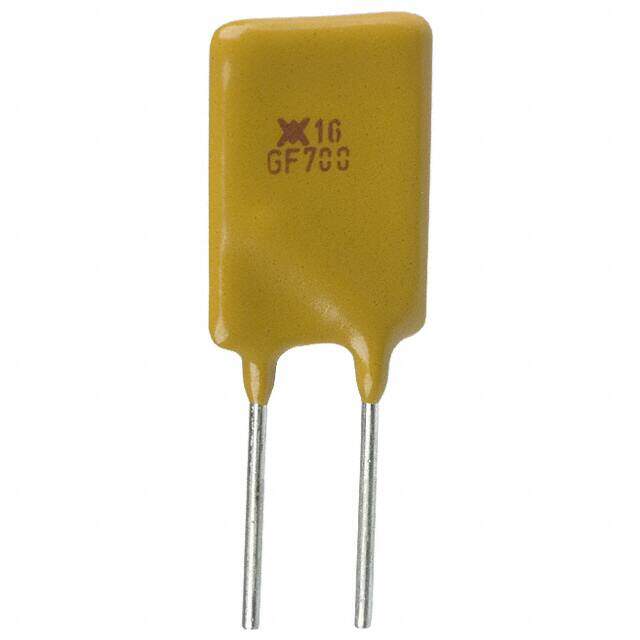

RGEF700
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 16V 7A RADIAL
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.60192
≥100 USD $0.58432
≥500 USD $0.491216
≥1000 USD $0.40788
≥3000 USD $0.370762
Inventory: 314
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.776 19.70mm
Height 19.7mm
Technical
Trip Current 11.9A
Resistance - Post Trip (R1) (Max) 20mOhm
Resistance - Initial (Ri) (Min) 7.7mOhm
Time to Trip 3.5s
Voltage - Max 16V
Thermistor Application TEMPERATURE SENSING
Hold Current 7A
Current - Max 100A
Lead Spacing 0.199 5.05mm
Operating Supply Voltage 16V
Approval Agency CSA, TUV, UL
Rated Power Dissipation (P) 3W
Reach Compliance Code unknown
Packing Method BULK
Additional Feature RESISTANCE RANGE(MIN-MAX): 0.0077-0.0131
Resistance 20mOhm
Type Polymeric
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.421Lx0.098W 10.70mmx2.50mm
Series PolySwitch?, RGEF
Published 2005
Packaging Bag
Operating Temperature -40°C~85°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
