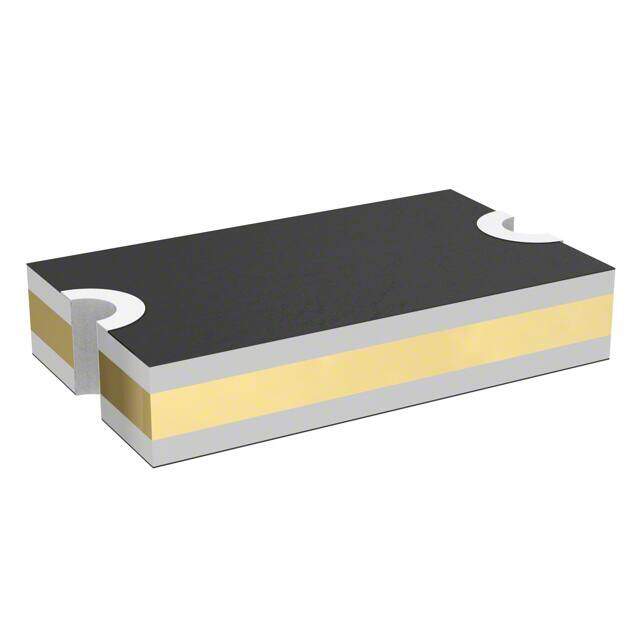

PICOSMDC010S-2
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric), Concave
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 15V 100MA 0805
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.33616
≥100 USD $0.32648
≥500 USD $0.27456
≥1000 USD $0.228008
≥3000 USD $0.207258
Inventory: 1275
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.039 1.00mm
Technical
Trip Current 300mA
Current - Trip (It) 300mA
Resistance - Post Trip (R1) (Max) 11Ohm
Resistance - Initial (Ri) (Min) 1.5Ohm
Time to Trip 600ms
Voltage - Max 15V
Hold Current 100mA
Current - Max 100A
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.083Lx0.055W 2.10mmx1.40mm
Series PolySwitch?, picoSMD
Published 2003
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 0805 (2012 Metric), Concave
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
