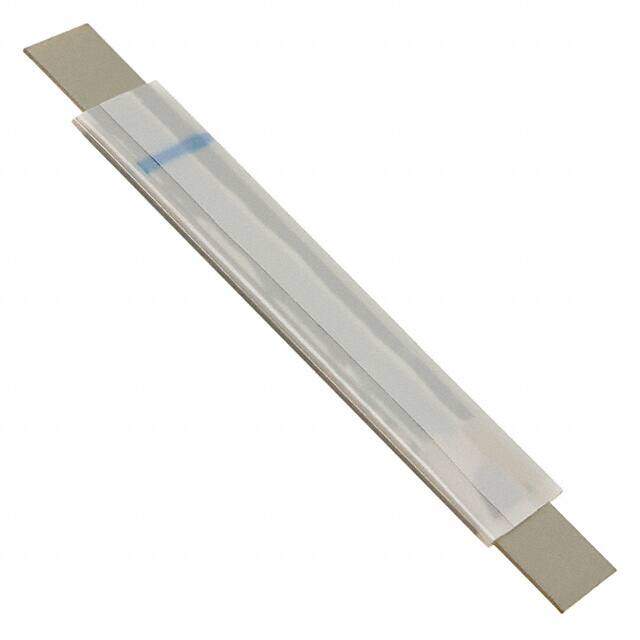

LR4-900F
RoHS
RoHS compliant
RoHS compliantPackage Strap
Category Circuit Protection / PTC Resettable Fuses
Description
PTC Resettable Fuse 9A(hold) 16.7A(trip) 20VDC 100A 3.8W 5s 0.006Ohm SMD Solder Pad 47.6 X 8.5 X 1.3mm Bag
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
≥10 USD $1.34992
≥100 USD $1.28216
≥500 USD $1.034704
≥1000 USD $0.877272
≥3000 USD $0.854797
Inventory: 14052
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type User Defined
Package / Case Strap
Technical
Operating Temperature -40°C~85°C
Packaging Bag
Published 2011
Series PolySwitch?, LR4
Size / Dimension 1.831Lx0.323W 46.50mmx8.20mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Polymeric
Resistance 11mOhm
Reach Compliance Code unknown
Approval Agency CSA, TUV, UL
Operating Supply Voltage 20V
Current - Max 100A
Hold Current 9A
Voltage - Max 20V
Time to Trip 5s
Resistance - Initial (Ri) (Min) 6mOhm
Resistance - Post Trip (R1) (Max) 14mOhm
Trip Current 16.7A
Dimensions
Height 1.3mm
Thickness (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
