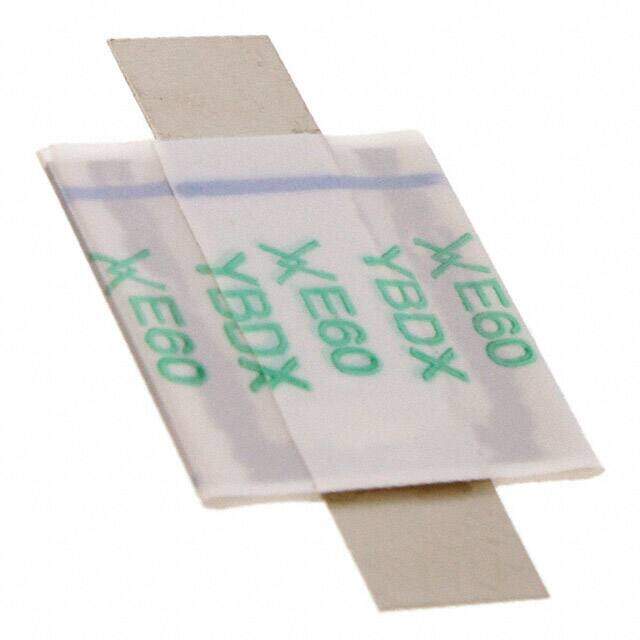

LR4-600F
RoHS
RoHS compliant
RoHS compliantPackage Strap
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 20V 6A STRAP
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.8272
≥100 USD $0.77352
≥500 USD $0.640288
≥1000 USD $0.533544
≥3000 USD $0.520256
Inventory: 1237
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type User Defined
Package / Case Strap
Technical
Operating Temperature -40°C~85°C
Packaging Bag
Published 2013
Series PolySwitch?, LR4
Size / Dimension 0.984Lx0.559W 25.00mmx14.20mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Polymeric
Resistance 15mOhm
Reach Compliance Code unknown
Approval Agency CSA, TUV, UL
Operating Supply Voltage 20V
Current - Max 100A
Hold Current 6A
Voltage - Max 20V
Time to Trip 5s
Resistance - Initial (Ri) (Min) 7mOhm
Resistance - Post Trip (R1) (Max) 19mOhm
Trip Current 11.7A
Dimensions
Height 1mm
Thickness (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
