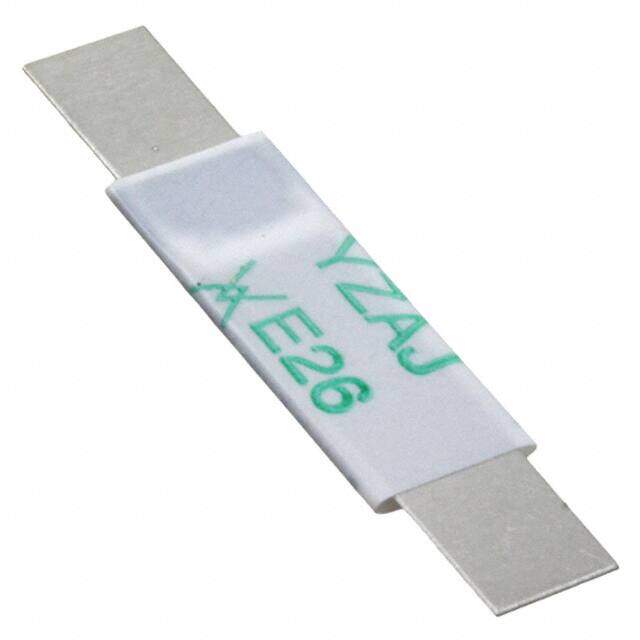

LR4-260F
RoHS
RoHS compliant
RoHS compliantPackage Strap
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 15V 2.6A STRAP
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.714557
≥1 USD $0.714557
≥10 USD $0.674115
≥100 USD $0.635953
≥500 USD $0.59996
≥1000 USD $0.565993
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.039 1.00mm
Height 1mm
Technical
Trip Current 5.8A
Resistance - Post Trip (R1) (Max) 63mOhm
Resistance - Initial (Ri) (Min) 20mOhm
Time to Trip 5s
Voltage - Max 15V
Hold Current 2.6A
Current - Max 100A
Operating Supply Voltage 15V
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Resistance 46mOhm
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.866Lx0.205W 22.00mmx5.20mm
Series PolySwitch?, LR4
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Strap
Mounting Type User Defined
Supply Chain
Factory Lead Time 9 Weeks
