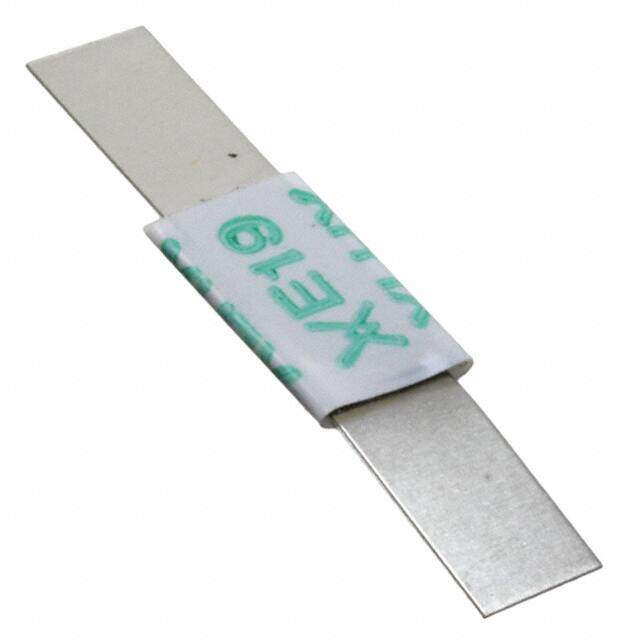

LR4-190F
RoHS
RoHS compliant
RoHS compliantPackage Strap
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 15V 1.9A STRAP
PDF
/
Buying Options
Total Price: USD $3.74
Unit Price: USD $3.7411
≥1 USD $3.7411
≥10 USD $3.06945
≥100 USD $2.9735
≥500 USD $2.87755
≥1000 USD $2.7816
Inventory: 7392
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Trip Current 3.9A
Current - Trip (It) 3.9A
Resistance - Post Trip (R1) (Max) 102mOhm
Resistance - Initial (Ri) (Min) 39mOhm
Time to Trip 5s
Voltage - Max 15V
Hold Current 1.9A
Current - Max 100A
Approval Agency CSA, TUV, UL
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.827Lx0.205W 21.00mmx5.20mm
Series PolySwitch?, LR4
Published 2011
Packaging Bag
Operating Temperature -40°C~85°C
Physical
Package / Case Strap
Mounting Type User Defined
Supply Chain
Factory Lead Time 9 Weeks
