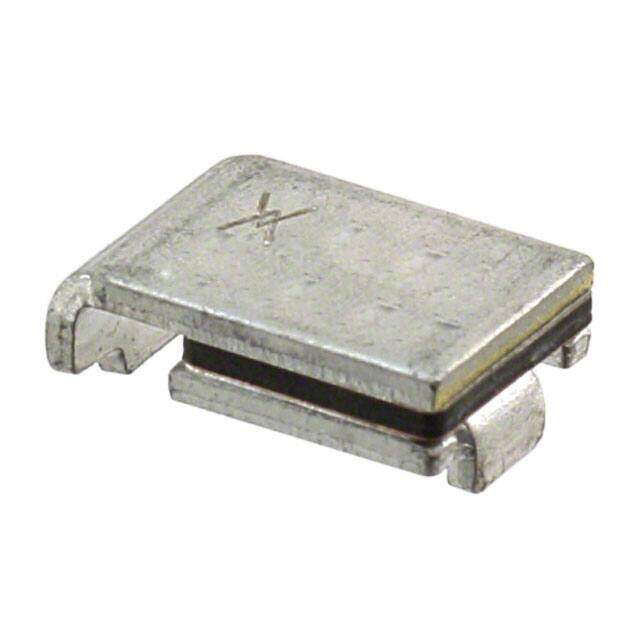

ASMD150F-2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 16V 1.27A 2SMD
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.68288
≥100 USD $0.66176
≥500 USD $0.556864
≥1000 USD $0.462264
≥3000 USD $0.420218
Inventory: 1197
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.118 3.00mm
Technical
Trip Current 2.95A
Resistance - Post Trip (R1) (Max) 250mOhm
Resistance - Initial (Ri) (Min) 49mOhm
Time to Trip 25s
Voltage - Max 16V
Hold Current 1.27A
Current - Max 40A
Operating Supply Voltage 16V
Reach Compliance Code unknown
Terminal Finish Tin (Sn)
Type Polymeric
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.343Lx0.250W 8.70mmx6.36mm
Series PolySwitch?, ASMD
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 2-SMD
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
