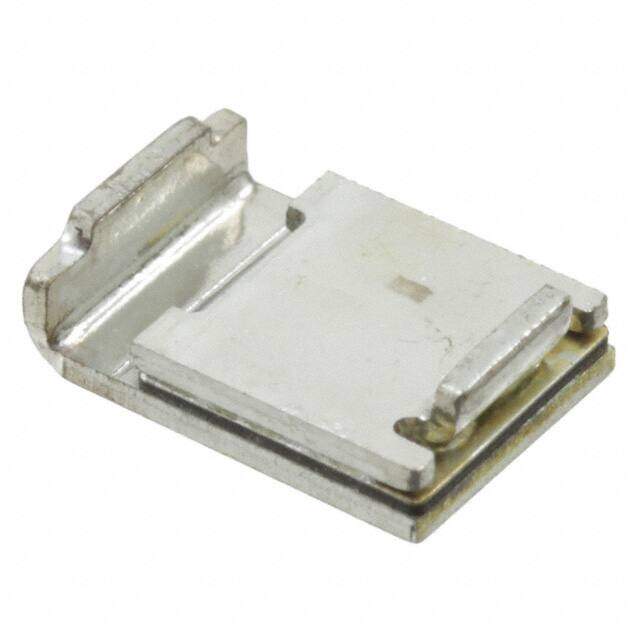

AHS160-2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 16V 1.6A 2SMD
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.67056
≥100 USD $0.64944
≥500 USD $0.546656
≥1000 USD $0.453816
≥3000 USD $0.412579
Inventory: 1218
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.118 3.00mm
Technical
Trip Current 3.2A
Current - Trip (It) 3.2A
Resistance - Post Trip (R1) (Max) 150mOhm
Resistance - Initial (Ri) (Min) 50mOhm
Time to Trip 15s
Voltage - Max 16V
Hold Current 1.6A
Current - Max 70A
Reach Compliance Code unknown
Type Polymeric
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Pbfree Code yes
Size / Dimension 0.343Lx0.250W 8.70mmx6.36mm
Series PolySwitch?, AHS
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case 2-SMD
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
