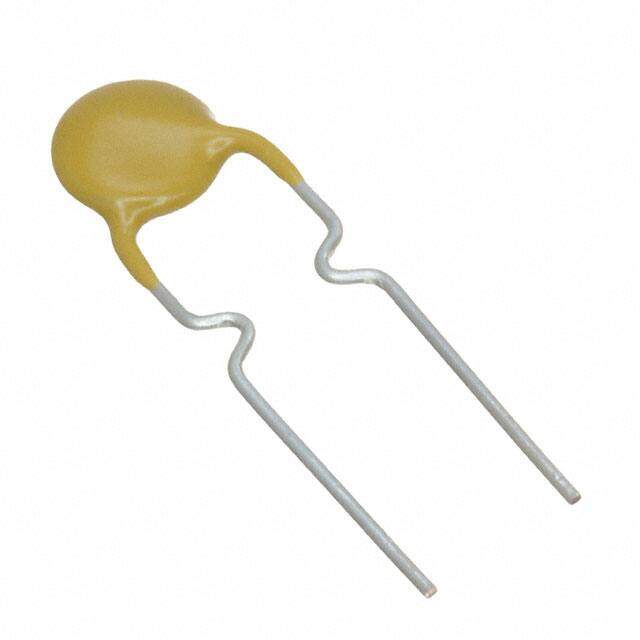

AHRF050 image
Favorite
AHRF050 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description PTC RESET FUSE 30V 500MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5896
≥1 USD $0.5896
≥10 USD $0.57024
≥100 USD $0.55264
≥500 USD $0.464992
≥1000 USD $0.385968
≥3000 USD $0.350909
Inventory: 707
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.500 12.70mm

Technical

Trip Current 1A
Current - Trip (It) 1A
Resistance - Post Trip (R1) (Max) 1.1Ohm
Resistance - Initial (Ri) (Min) 350mOhm
Time to Trip 3s
Voltage - Max 30V
Thermistor Application OVERLOAD PROTECTION
Hold Current 500mA
Rated (AC) Voltage (URac) 30V
Current - Max 40A
Lead Spacing 0.199 5.05mm
Rated Power Dissipation (P) 0.9W
Reach Compliance Code unknown
Packing Method BULK
Type Polymeric
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.291Dia x 0.130 T 7.40mmx3.30mm
Series PolySwitch?, AHRF
Published 2013
Packaging Bag
Operating Temperature -40°C~125°C

Physical

Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
