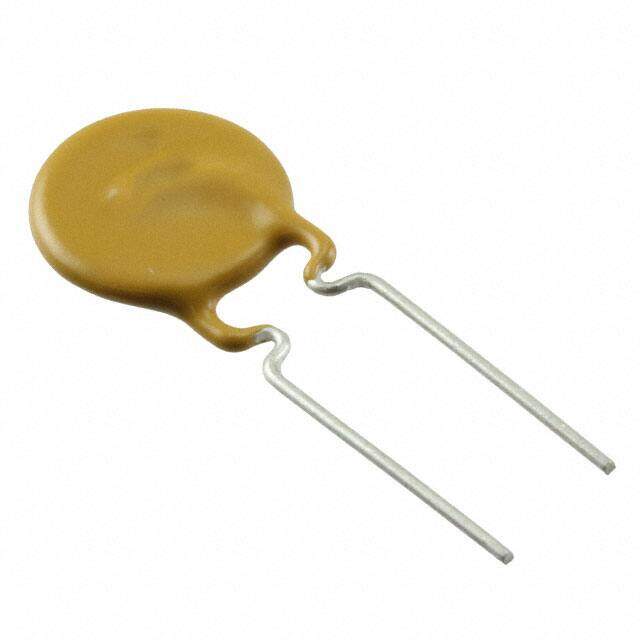

AHEF100
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 32V 1A RADIAL
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.62832
≥100 USD $0.60984
≥500 USD $0.512688
≥1000 USD $0.425656
≥3000 USD $0.386954
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Disc
Surface Mount NO
Terminal Shape WIRE
Technical
Operating Temperature -40°C~125°C
Packaging Bag
Published 2009
Series PolySwitch?, AHEF
Size / Dimension 0.382Dia x 0.118 T 9.70mmx3.00mm
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Type Polymeric
Terminal Finish Matte Tin/Copper (Sn/Cu)
Additional Feature RESISTANCE RANGE(MIN-MAX): 0.15-0.3
Packing Method BULK
Rated Power Dissipation (P) 1.4W
Lead Spacing 0.199 5.05mm
Current - Max 100A
Rated (AC) Voltage (URac) 32V
Hold Current 1A
Thermistor Application TEMPERATURE SENSING
Voltage - Max 32V
Time to Trip 6.2s
Resistance - Initial (Ri) (Min) 150mOhm
Resistance - Post Trip (R1) (Max) 430mOhm
Current - Trip (It) 1.9A
Trip Current 1.9A
Dimensions
Height Seated (Max) 0.535 13.60mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
