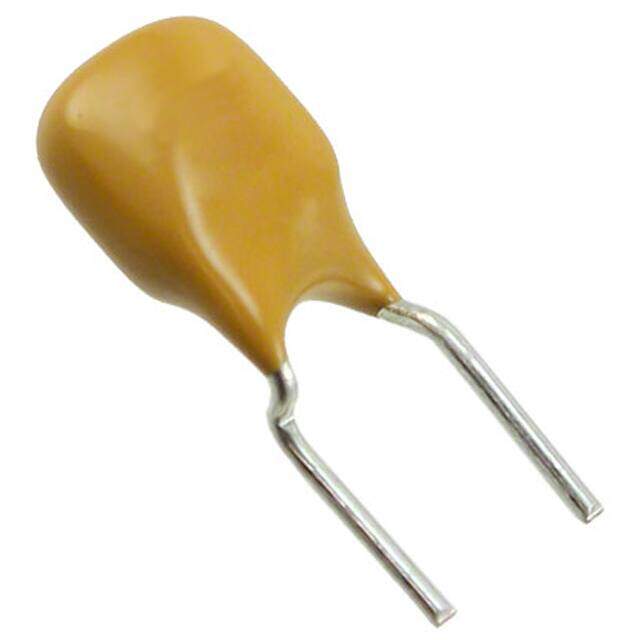

250R120ZR
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 60V 120MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.67936
≥100 USD $0.63536
≥500 USD $0.525712
≥1000 USD $0.438064
≥3000 USD $0.427082
Inventory: 380
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.433 11.00mm
Technical
Trip Current 240mA
Resistance - Post Trip (R1) (Max) 16Ohm
Resistance - Initial (Ri) (Min) 4Ohm
Time to Trip 2.5s
Voltage - Max 60V 250V Int
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 120mA
Hold Current 120mA
Max Voltage Rating (DC) 60V
Power Dissipation 1W
Max Current Rating 3A
Lead Spacing 0.201 5.10mm
Working Voltage 250V
Lead Pitch 5.1mm
Approval Agency cURus, TUV
Current Rating 3A
Packing Method AMMO PACK
Subcategory Non-linear Resistors
HTS Code 8533.40.80.70
Additional Feature 4 TO 16 OHMS MEASURED AT 20 DEG CEL
Terminal Finish Matte Tin (Sn)
Resistance 16Ohm
Type Polymeric
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.256Lx0.181W 6.50mmx4.60mm
Series POLY-FUSE?, 250R
Published 2010
Packaging Tape & Box (TB)
Operating Temperature -40°C~85°C
Physical
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
