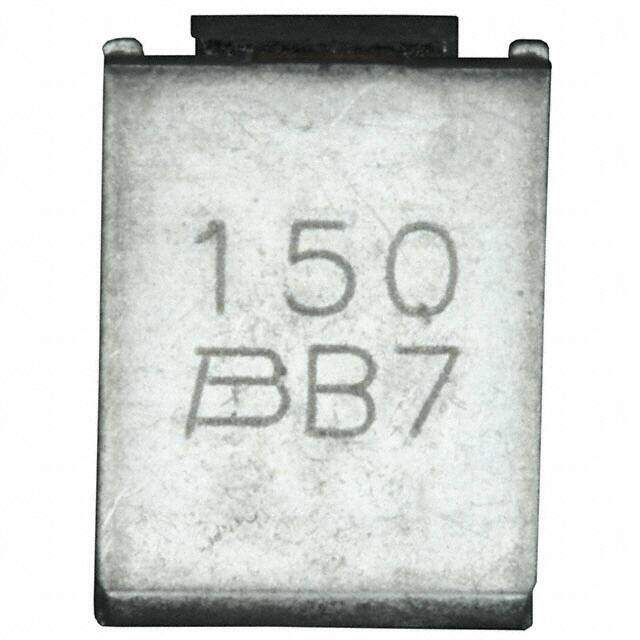

MF-SM150-2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Circuit Protection / PTC Resettable Fuses
Description
FUSE RESETTABLE 1.5A 15V SMD
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.35728
≥100 USD $0.34672
≥500 USD $0.291808
≥1000 USD $0.242352
≥3000 USD $0.220282
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness (Max) 0.118 3.00mm
Height 3mm
Technical
Trip Current 3A
Resistance - Post Trip (R1) (Max) 250mOhm
Resistance - Initial (Ri) (Min) 60mOhm
Time to Trip 5s
Thermistor Application OVERLOAD PROTECTION
Hold Current 1.5A
Terminal Placement DUAL ENDED
Power Dissipation 1.9W
Max Current Rating 100A
Operating Supply Voltage 15V
Lead Length 430μm
Approval Agency cURus, TUV
Base Part Number MF-SM
Current Rating 1.5A
Packing Method TR, 14 INCH
Voltage - Rated DC 15V
Voltage - Rated 15V
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 250mOhm
Type Polymeric
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.344Lx0.264W 8.75mmx6.71mm
Series Multifuse?, MF-SM
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Terminal Material Brass
Number of Pins 2
Terminal Shape FLAT
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
