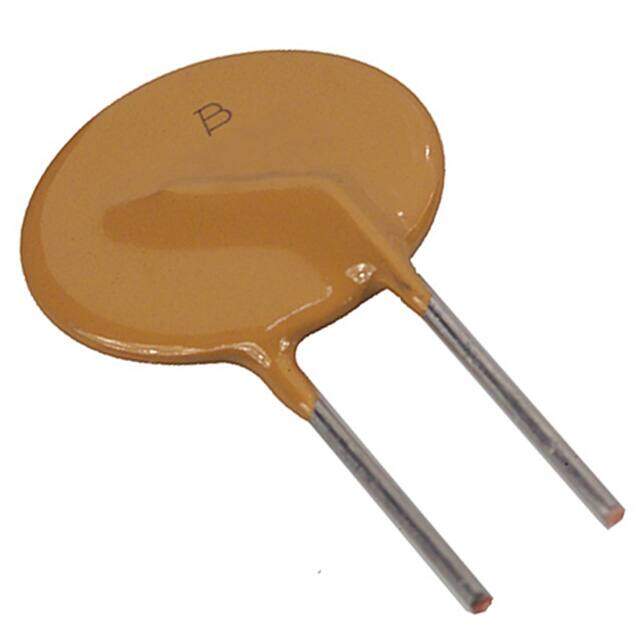

MF-RX250-005
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 60V 2.5A RADIAL
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.322685
≥1 USD $0.322685
≥200 USD $0.124883
≥500 USD $0.120498
≥1000 USD $0.118319
Inventory: 3028
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 1.039 26.40mm
Technical
Trip Current 5A
Current - Trip (It) 5A
Resistance - Post Trip (R1) (Max) 130mOhms
Resistance - Initial (Ri) (Min) 50mOhms
Time to Trip 15.6s
Voltage - Max 60V
Current - Hold (Ih) (Max) 2.5A
Hold Current 2.5A
Current - Max 40A
Power Dissipation 2.5W
Max Current Rating 40A
Lead Spacing 0.402 10.20mm
Operating Supply Voltage 60V
Lead Pitch 10.2mm
Approval Agency cURus, TUV
Base Part Number MF-RX
Current Rating 40A
Voltage - Rated DC 60V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 80mOhm
Type Polymeric
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.839Lx0.122W 21.30mmx3.10mm
Series Multifuse?, MF-RX
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 5 Weeks
