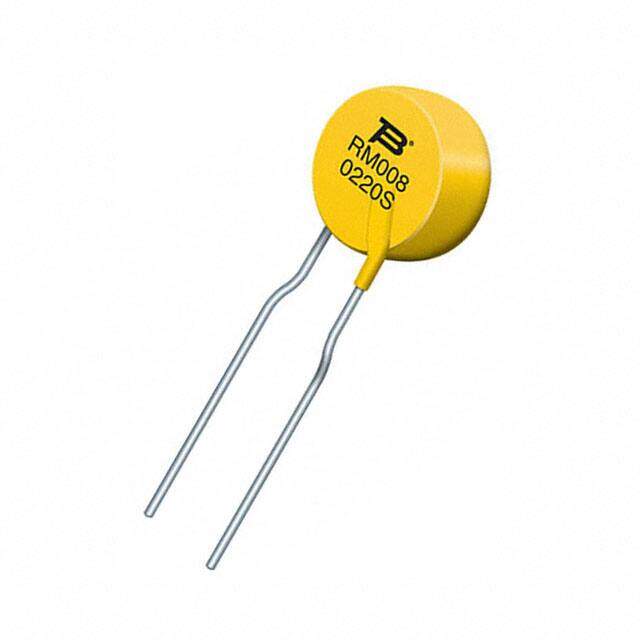

MF-RM008/240-0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 240V 80MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.38544
≥100 USD $0.374
≥500 USD $0.314512
≥1000 USD $0.261184
≥3000 USD $0.237424
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Disc
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2012
Series Multifuse?, MF-RM
Size / Dimension 0.327Dia x 0.150 T 8.30mmx3.80mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
Type Polymeric
Resistance 7.4Ohm
Terminal Finish Tin (Sn)
HTS Code 8533.40.80.70
Voltage - Rated DC 240V
Current Rating 80mA
Base Part Number MF-RM
Approval Agency cURus, TUV
Lead Pitch 5.1mm
Lead Spacing 0.114 2.90mm
Max Voltage Rating (AC) 240V
Max Current Rating 1.2A
Power Dissipation 900mW
Hold Current 80mA
Voltage - Max 240V 265V Int
Time to Trip 10s
Resistance - Initial (Ri) (Min) 7.4Ohm
Resistance - Post Trip (R1) (Max) 26Ohm
Trip Current 190mA
Dimensions
Height Seated (Max) 0.508 12.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
