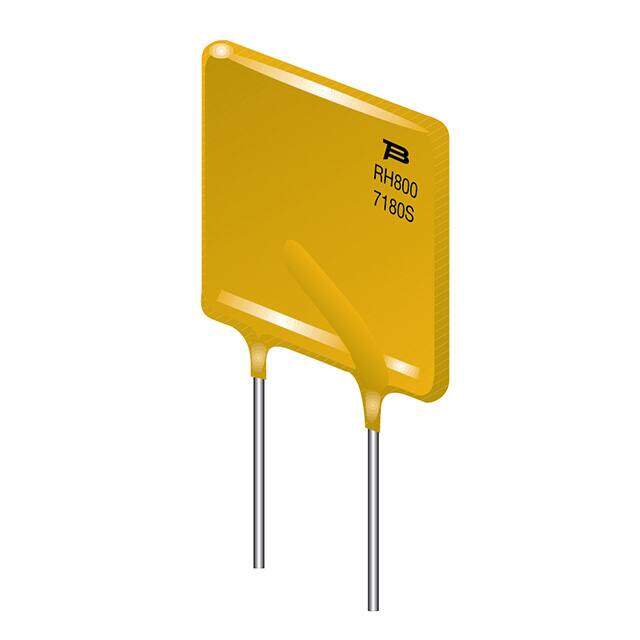

MF-RHT800-2
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
8.0A HIGH-TEMPERATURE PTC RESETT
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.75504
≥100 USD $0.70664
≥500 USD $0.584848
≥1000 USD $0.487344
≥3000 USD $0.475165
Inventory: 2029
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.886 22.50mm
Technical
Trip Current 15A
Current - Trip (It) 15A
Resistance - Post Trip (R1) (Max) 20mOhm
Resistance - Initial (Ri) (Min) 8mOhm
Time to Trip 8s
Hold Current 8A
Current - Max 100A
Lead Spacing 0.201 5.10mm
Base Part Number MF-RHT
Voltage - Rated DC 16V
Type Polymeric
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.630Lx0.118W 16.00mmx3.00mm
Series Multifuse?, MF-RHT
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Radial, Disc
Mounting Type Through Hole
Supply Chain
Factory Lead Time 7 Weeks
