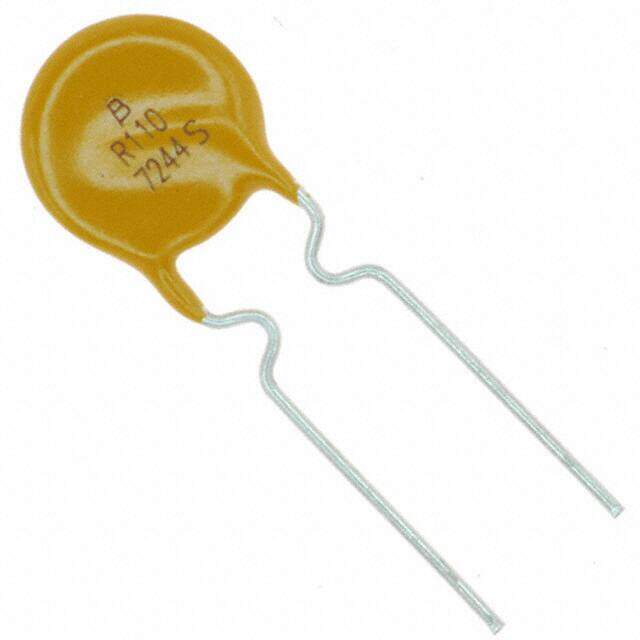

MF-R110
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 30V 1.1A RADIAL
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.32208
≥100 USD $0.173765
≥500 USD $0.153314
≥1000 USD $0.137984
≥3000 USD $0.13288
Inventory: 5980
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Body Material Polymer
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2003
Series Multifuse?, MF-R
Size / Dimension 0.350Dia x 0.118 T 8.90mmx3.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
Type Polymeric
Resistance 180mOhm
Voltage - Rated DC 30V
Max Power Dissipation 700mW
Terminal Pitch 5.1mm
Current Rating 1.1A
Voltage - Rated AC 30V
Approval Agency cURus, TUV
Lead Pitch 5.1mm
Lead Length 7.6mm
Operating Supply Voltage 30V
Lead Spacing 0.201 5.10mm
Lead Diameter 510 μm
Max Current Rating 40A
Power Dissipation 700mW
Wire/Cable Diameter 510 μm
Hold Current 1.1A
Thermistor Application TEMPERATURE SENSING
Time to Trip 6.6s
Resistance - Initial (Ri) (Min) 100mOhm
Resistance - Post Trip (R1) (Max) 270mOhm
Trip Current 2.2A
Dimensions
Diameter 8.9mm
Height 14mm
Height Seated (Max) 0.551 14.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
