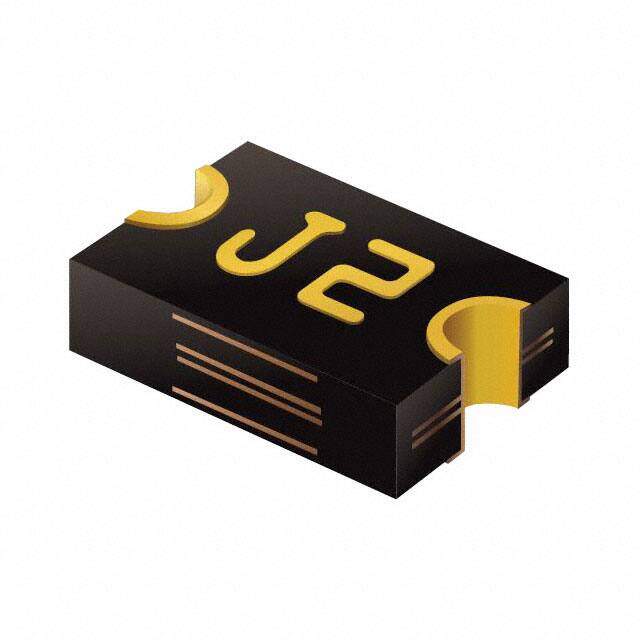

MF-PSML110/12-2
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric), Concave
Category Circuit Protection / PTC Resettable Fuses
Description
0805 SMD POLYMER PTC 1.1A/12V
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.0824
≥1 USD $1.0824
≥10 USD $1.0472
≥100 USD $0.97944
≥500 USD $0.810656
≥1000 USD $0.675488
≥3000 USD $0.658592
Inventory: 1101
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness (Max) 0.028 0.70mm
Technical
Current - Trip (It) 2.2A
Resistance - Post Trip (R1) (Max) 210mOhm
Resistance - Initial (Ri) (Min) 30mOhm
Time to Trip 300ms
Voltage - Max 12V
Current - Hold (Ih) (Max) 1.1A
Current - Max 50A
Approval Agency cUL, cURus, TUV
Type Polymeric
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 0.085Lx0.053W 2.15mmx1.35mm
Series Multifuse?, MF-PSML/X
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 0805 (2012 Metric), Concave
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
