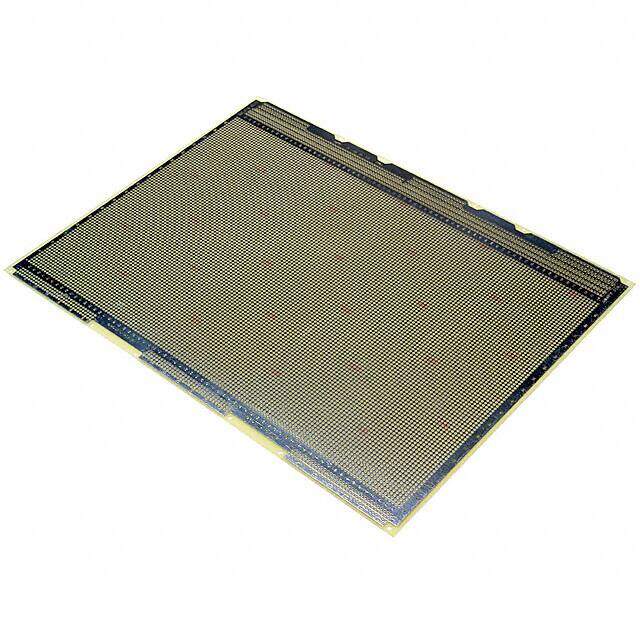

E280-9U-3
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description
PC BOARD 9UX280MM VOLT/GND PLANE
PDF
/
Inventory: 3187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Contact Material Glass
Mount External
Package / Case Epoxy
Material Glass
Technical
Published 2009
Series Vectorbord?
Size / Dimension 14.44Lx11.02W 366.8mmx279.9mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Pitch 0.100 2.54mm
Plating Non-Plated Through Hole (NPTH)
Hole Diameter 0.055 (1.40mm)
Proto Board Type Plugboard, Hard Metric
Circuit Pattern Pad Per Hole (Round), Ground Plane
Dimensions
Height 1.57mm
Length 366.776mm
Width 279.908mm
Thickness 1.57mm
Board Thickness 0.062 1.57mm 1/16
Compliance
RoHS Status Non-RoHS Compliant
