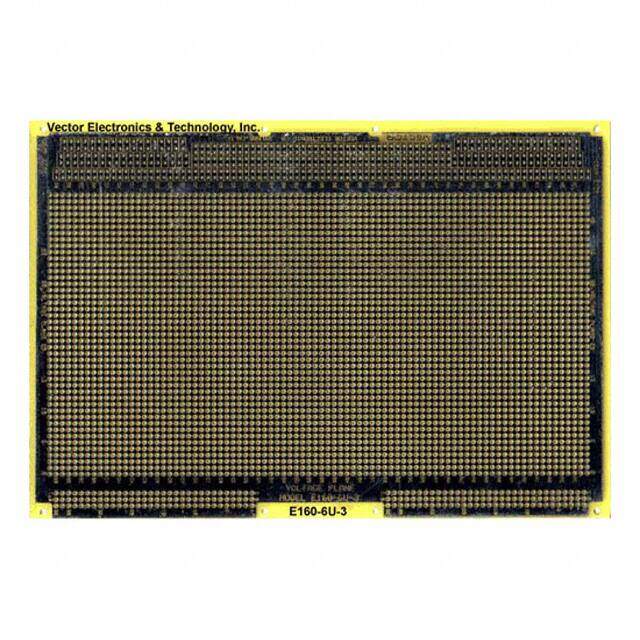

E160-6U-3 image
Favorite
E160-6U-3 image
Favorite
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description PC BOARD 6UX160MM VOLT/GND PLANE
PDF
/
Inventory: 4445
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Width 160.02mm
Length 233.426mm
Height 1.57mm

Technical

Circuit Pattern Pad Per Hole (Round), Ground Plane
Proto Board Type Plugboard, Hard Metric
Hole Diameter 0.055 (1.40mm)
Evaluation Kit Yes
Plating Non-Plated Through Hole (NPTH)
Pitch 0.100 2.54mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 9.19Lx6.30W 233.4mmx160.0mm
Series Vectorbord? Plugbord?
Published 2005

Physical

Material Glass
Package / Case Epoxy
Mount External
Contact Material Glass

Supply Chain

Factory Lead Time 2 Weeks
